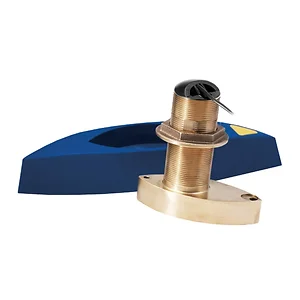

Airmar B785C Triducer Medium CHIRP with Garmin 12-Pin Mix-N-Match Cable
Model: B785C-M-12GThe B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| Cable-Length | 9 m (30ft) |
| Acoustic Window | Urethane |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | Up to 24° with fairing |
| Display Connector | Garmin 12-Pin |
| Frequency Band | Medium 80-130 kHz |
| Hole Size | 51 mm (2in) |
| Housing Material | Bronze |
| Max Depth | 274 m (900ft) |
| Medium Frequency Beamwidth | 24°-16° |
| Power Rating | 600 W |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Usable Shaft Length | 121 mm (4.75") |
The Airmar B785C Bronze Transducer is a thru-hull, CHIRP-ready solution designed for marine applications requiring depth and water temperature sensing. Operating within a medium frequency range of 80 to 130 kHz, this transducer provides 50 kHz of total bandwidth, covering common fishing frequencies like 88 and 107 kHz. It offers a 24� to 16� beamwidth and is rated for 600 W of power, supporting a maximum depth of 274 m (900'). The bronze housing, paired with a High-performance Fairing, is suitable for planing or displacement hulls and aims to maintain optimal performance at higher speeds. This transducer is intended for offshore fishing and freshwater anglers, particularly on smaller fishing boats, where it can assist with bottom detail and fish-target separation in shallow to mid-depth waters. The B785C-M-12G model includes a Garmin 12-Pin Mix-N-Match cable for direct integration.
This transducer operates within a medium frequency band of 80 to 130 kHz, offering 50 kHz of total bandwidth.
The box contains the B785C-M-MM Triducer, a Fairing Block, an Anti-rotation Bolt, and an MMC-12G cable.
The Airmar B785C transducer has a maximum depth capability of 274 meters (900 feet).
This transducer comes with a Garmin 12-Pin display connector, making it compatible with Garmin systems using this interface.
B785C-M-12G - Airmar B785C Bronze Transducer Medium CHIRP With Garmin 12-Pin
