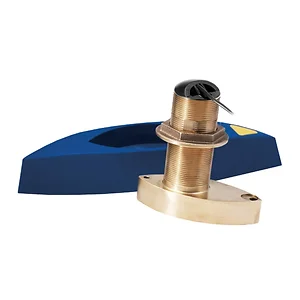

Airmar B785C Triducer Medium CHIRP with Furuno 10-Pin Mix-N-Match Cable
Model: B785C-M-10FThe B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| Cable-Length | 9 m (30ft) |
| Acoustic Window | Urethane |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | Up to 24° with fairing |
| Display Connector | Furuno 10-Pin |
| Frequency Band | Medium 80-130 kHz |
| Hole Size | 51 mm (2in) |
| Housing Material | Bronze |
| Max Depth | 274 m (900ft) |
| Medium Frequency Beamwidth | 24°-16° |
| Power Rating | 600 W |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Usable Shaft Length | 121 mm (4.75") |
The Airmar B785C Bronze Transducer is a thru-hull, CHIRP-ready triducer designed for marine applications, suitable for both offshore and freshwater anglers. This unit provides depth and fast-response water-temperature sensing, operating with 600 W of power across a medium frequency band of 80 to 130 kHz. It offers a 24� to 16� beamwidth, enabling a maximum depth of 274 m (900'). The transducer covers popular fishing frequencies like 88 and 107 kHz, along with other frequencies within its 50 kHz total bandwidth. Its medium frequency range is intended to provide performance in shallow to mid-depths, improving bottom detail and fish-target separation. The bronze housing and included High-performance Fairing are recommended for use on planing or displacement hulls, with the fairing designed to optimize broadband performance at speeds exceeding 30 knots. This model, part number B785C-M-10F, features patented Xducer ID� technology and includes a Furuno 10-Pin connector for integration with compatible systems.
This transducer operates within a medium frequency band of 80 to 130 kHz and has a power rating of 600 W.
The Airmar B785C has a maximum depth capability of 274 m (900').
The transducer comes with an MMC-10F cable, featuring a Furuno 10-Pin connector for display integration.
The box includes the B785C-M-MM Triducer, a Fairing Block, an Anti-rotation Bolt, and an MMC-10F cable.
B785C-M-10F - Airmar B785C Bronze Transducer Medium CHIRP With Furuno 10-Pin
