25 Available
Condition: New

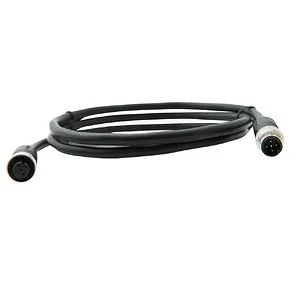

3M NMEA2000 Micro Cable Assembly
This high-quality micro cable assembly is designed for use as a drop cable or to extend your NMEA 2000 backbone. Constructed with UL-certified components, it guarantees reliable performance and quick installation.
The cable consists of five cores within a waterproof jacket, including power, ground, and two signal wires, alongside a drain wire for optimal protection against Radio Frequency Interference (RFI).
The assembly can create a backbone up to 100 meters long. If a longer cable run is required, simply use a mini cable to extend your setup while maintaining the 100-meter limit on the outer Lite sections.
Its drop cable length must not exceed 6 meters, with all drop lengths combined not surpassing 72 meters to ensure system integrity.
The Actisense A2K-TDC-3M is a 3-meter NMEA 2000 Micro Cable Assembly designed for extending an NMEA 2000 backbone or functioning as a drop cable within a marine network. This interconnect cable is constructed with UL-certified components, ensuring reliable data and power transmission in demanding environments. It features five cores, including power, ground, two signal wires, and a drain wire for RFI protection, all encased in a waterproof jacket. The cable supports backbone extensions up to 100 meters, with the option to integrate mini cables for longer runs while adhering to the 100-meter limit for micro sections. When used as a drop cable, individual lengths must not exceed 6 meters, and the combined total of all drop lengths should not surpass 72 meters to maintain system integrity. This product is suitable for IT professionals and system integrators managing NMEA 2000 network deployments requiring robust and compliant cabling solutions.
This 3M NMEA2000 Micro Cable Assembly can be used to create a backbone up to 100 meters long. For longer overall runs, mini cables can extend the setup, but the micro cable sections must still adhere to the 100-meter limit.
When used as a drop cable, the individual length must not exceed 6 meters. Additionally, the combined total of all drop cable lengths in the system must not surpass 72 meters to ensure system integrity.
The cable features a waterproof jacket and an IP67 rating when mated, providing protection against water and dust ingress. It also includes a drain wire for optimal protection against Radio Frequency Interference (RFI).
The cable is rated for a current of 3A and a voltage of 60VDC. It includes a 22 AWG power pair, a 24 AWG data pair, and a 22 AWG drain, all made of 19-strand tinned copper.
A2K-TDC-3M - Actisense 3M NMEA2000 Micro Cable Assembly
