A2K-TDC-1M - Actisense NMEA2000 Micro Cable Assembly - 1M

NMEA2000 Micro Cable Assembly - 1M

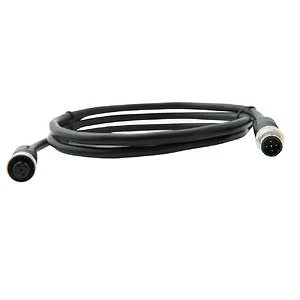

This 1-meter micro cable assembly is designed for use within NMEA 2000 networks. It can serve as a drop cable from a backbone or extend the backbone cable, ensuring flexibility in your marine networking setup.

Constructed with UL-certified materials, this cable assembly guarantees reliable installation. It consists of five wires within a single waterproof cable: power, ground, two data wires, and a drain wire for shielding that protects against external radio interference.

The cable can form a backbone up to 100 meters in length with the option to extend it using mini cables for longer distances. Each drop cable should not exceed 6 meters, and the overall drop length must not surpass 72 meters to maintain network efficiency.

Actisense has meticulously designed these cables utilizing specialized NMEA knowledge for optimal performance.

The Actisense NMEA2000 Micro Cable Assembly (A2K-TDC-1M) is a 1-meter interconnect cable designed for NMEA 2000 marine networks. This assembly facilitates network expansion and configuration, functioning as either a drop cable from a backbone or an extension for the backbone itself. It is suitable for IT professionals and marine system integrators requiring reliable network infrastructure in maritime environments. The cable is constructed with UL-certified materials and features five wires: power, ground, two data wires, and a shielded drain wire to mitigate radio interference. It supports backbone lengths up to 100 meters, with the option to extend further using mini cables. Adherence to specified drop cable lengths (max 6 meters per drop, 72 meters total drop length) is necessary for optimal network performance. This cable addresses the need for a robust and compliant solution for NMEA 2000 network installations.
