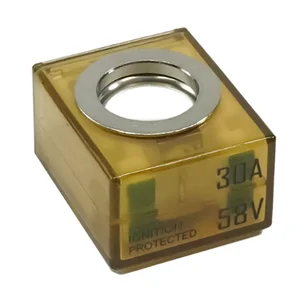

3603-030 - Egis Mobile Electric Egis 30 Amp MRBF Terminal Fuse with Waterproof Design

30 Amp MRBF Terminal Fuse with Waterproof Design

• Transparent body for easy visual inspection of fuse status
• Ignition protection compliant with SAE/J1171-ISO8846 standards
• High interrupt rating meets ABYC requirements for main circuit protection in larger battery banks
• Color-coded design simplifies identification of amperage ratings

Features:

• Protects electrical circuits from short circuits and over-current loads, preventing potential damage from overheating wire insulation.
• High interrupt current capability safely protects connections to large paralleled battery banks.
• Ignition protected for safe installation in enclosed spaces with potential for explosive gases; designed for harsh environments with shock and vibration resistance.
• Sealed against dust and water intrusion, ensuring reliable circuit protection over the life of the installation.
• Rated for 58 Vdc, suitable for 12 to 48V nominal applications.
• Includes a 4-year warranty, assuring the product quality and performance.

Specifications:

• Continuous Current (Amps): 30
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48Vdc (Amps): 5,000
• Interrupt Rating @ 58Vdc (Amps): 2,000
• Ingress Protection: IP66
