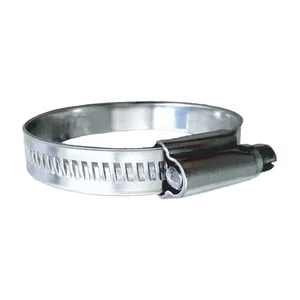

710-0121 - Trident Marine 316 Stainless Steel Non-Perforated Hose Clamp - SAE Size 8

316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 8

This premium quality hose clamp is constructed from all AISI 316 marine-grade stainless steel, ensuring high tensile strength and corrosion resistance. The 11.7 mm (0.46”) wide band is non-perforated, providing a smooth interior with rolled edges to prevent hose damage while maintaining an increased clamping force. The compact, one-piece housing design allows for one of the highest clamping force ratings available among worm gear style clamps.

Key Features:

• Screw head size: 7mm
• Designed for long service life and suitability in general-purpose hose applications

Recommendations:

• Always measure hose outer diameter before selecting the clamp size for a proper fit
• For critical applications, consider double-clamping each hose end
• For larger inner diameter hoses (like exhaust hoses), consider using our #720 series wide band 316 SS T-Bolt clamps

Construction Details:

• Band & Housing: 316 stainless steel, 11.7 mm wide band – 0.9 mm thick
• Screw Drive: 316 stainless steel with a 7.0 mm screw head

Specifications:

• SAE Size: 8
• Hose Inner Diameter: 3/8" – 1/2"
• Clamping Range: 5/8" – 15/16" (15-24 mm)
• Recommended Torque: 35-45 inch lbs

The Trident Marine 710-0121 is a worm gear hose clamp designed for securing hoses in general-purpose and marine environments. Constructed entirely from AISI 316 marine-grade stainless steel, this clamp offers high tensile strength and corrosion resistance, suitable for applications requiring durability against harsh conditions. Its 11.7 mm wide band is non-perforated, featuring rolled edges to minimize the risk of hose damage during installation and use. This design also contributes to an increased clamping force compared to perforated alternatives. The compact, one-piece housing further enhances its clamping capability. With a clamping range of 5/8" to 15/16" (15-24 mm) and an SAE Size 8 designation, it is intended for hoses with an inner diameter between 3/8" and 1/2". This product addresses the need for a reliable, damage-preventing hose connection in various operational settings.
