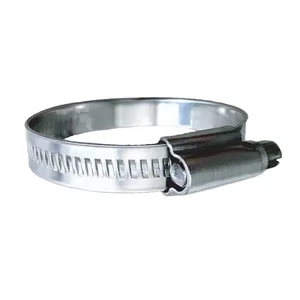

710-1001 - Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 10-Pack

316 SS Non-Perforated Worm Gear Hose Clamp - 10-Pack

This premium marine-grade worm gear hose clamp is made from high tensile strength AISI 316 stainless steel, ensuring durability and rust resistance. The clamp features an 11.7 mm (0.46") wide non-perforated band that is smooth on the inside and has rolled edges, minimizing the risk of hose damage while providing an increased clamping force. With a compact one-piece design, it offers a high clamping force rating suitable for various applications.

Key Features:

• Screw head size: 7mm
• Long-lasting and safe for general-purpose hose connections

Recommendations:

• Measure hose outer diameter to select appropriate clamp size
• Double-clamp at each hose end for critical applications
• Consider wider band 316 SS T-Bolt Clamps for larger hoses

Construction Details:

• Band & Housing: 316 Stainless Steel, 11.7 mm wide, 0.9 mm thick
• Screw Drive: 316 Stainless Steel with 7.0 mm screw head

Specifications:

• SAE Size: 16
• Hose Inner Diameter: 7/8" – 1"
• Clamping Range: 1-1/16" – 1-1/2" (26-38 mm)
• Recommended Torque: 35-45 inch lbs

The Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp (part number 710-1001) is a durable fastening solution designed for secure hose connections in demanding environments. Constructed from AISI 316 stainless steel, these clamps offer resistance to rust and corrosion, making them suitable for marine or other harsh applications. The 11.7 mm wide non-perforated band features smooth interior surfaces and rolled edges to minimize the risk of damage to hoses during installation and use. Its compact, one-piece design provides a high clamping force, suitable for general-purpose hose connections. This 10-pack is intended for IT and facilities managers, or maintenance personnel who require reliable, long-lasting hose clamps for systems where corrosion resistance and hose integrity are critical. It addresses the need for secure, leak-resistant connections, particularly for hoses with an inner diameter between 7/8" and 1", and an outer diameter within the 1-1/16" to 1-1/2" clamping range.
