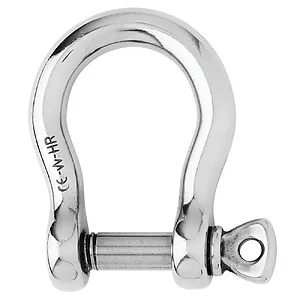

11240W - Wichard Marine 14mm HR Stainless Steel Bow Shackle

14mm HR Stainless Steel Bow Shackle

Overview:

This high-strength bow shackle is crafted from HR 17-4 PH stainless steel, offering superior resistance and reliability for demanding applications. Ideal for lifting, it provides a robust solution where high load capacity is required.

Applications:

• Heavy-duty lifting and pulling tasks
• Situations requiring significant load support
• Compatible with multiple lines or cables
• Not suitable for mooring

Specifications:

• Material: HR 17-4 PH stainless steel
• Working Load Limit (WLL): 5290 lb (2400 kg)
• Breaking Load: 26450 lb (12000 kg)
• Weight: 0.802 lb (364 g)

*Sold as an individual item.

The Wichard Marine 14mm HR Stainless Steel Bow Shackle (part number 11240W) is designed for demanding lifting and pulling applications requiring high load capacity. Constructed from HR 17-4 PH stainless steel, this shackle offers enhanced resistance compared to 316L stainless steel, providing a reliable solution for heavy-duty tasks. It is suitable for situations where significant load support is critical and can accommodate multiple lines or cables. With a Working Load Limit (WLL) of 5290 lb (2400 kg) and a Breaking Load of 26450 lb (12000 kg), it provides robust performance for industrial and marine environments. This shackle is CE marked and includes a batch number for traceability, ensuring it meets specified standards for high-strength applications. It is not intended for mooring purposes.
