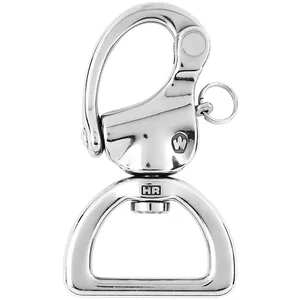

02374 - Wichard Marine Wichard 3-1/8" Stainless Steel Webbing Snap Shackle

Web Snap Shackle - 3-1/8"

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
• Its flat design allows attaching a webbing
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.187 / (g) 85

Dimensions:

• A: (inch) 5/8" / (mm) 16
• B: (inch) 1 3/16" / (mm) 30
• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard 3-1/8" Stainless Steel Webbing Snap Shackle, part number 02374, is engineered for secure and rotatable connections in demanding environments. Constructed from HR 17.4 PH stainless steel, this component offers a working load of 2110 lb (960 kg) and a breaking load of 4400 lb (2000 kg). Its design incorporates a webbing swivel, facilitating free rotation and simplifying attachment to webbing. The captive plunger pin mechanism helps prevent unintended detachment during operation. This snap shackle is suitable for applications requiring reliable, high-strength connections with rotational flexibility, such as those found in marine or industrial rigging where sail orientation or similar adjustments are necessary. It addresses the need for a durable, easily operable shackle that maintains connection integrity under significant load.
