Condition: New

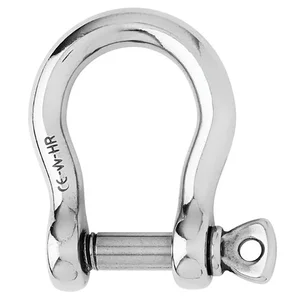

Wichard HR Stainless Steel Bow Shackle - 16mm Diameter
The Wichard HR Bow Shackle is designed for high-load industrial applications, made from superior HR 17.4 PH stainless steel. This shackle exhibits exceptional resistance, being up to 60% stronger than traditional 316L stainless steel shackles.
WARNING: Suitable for industrial uses only; do not use for mooring applications.
Specifications:
The Wichard HR Stainless Steel Bow Shackle, part number 11247, is engineered for high-load industrial applications. Constructed from HR 17.4 PH stainless steel, this shackle offers enhanced resistance, demonstrating up to 60% greater strength compared to standard 316L stainless steel shackles. It features a 16mm diameter and is designed for scenarios where ample space is needed to secure multiple lines or cables. With a Working Load Limit (WLL) of 8370 lb (3800 kg) and a Breaking Load of 41880 lb (19000 kg), this component is suitable for demanding lifting and securing tasks within industrial environments. It is CE marked, indicating compliance with safety standards. This shackle is intended for IT and operations managers requiring robust, high-capacity securing hardware for their infrastructure or equipment, specifically for industrial use cases.
The shackle is forged from HR 17.4 PH stainless steel, which provides superior strength and resistance compared to traditional 316L stainless steel.
The Working Load Limit (WLL) for this shackle is 8370 lb (3800 kg).
This shackle is designed for high-load industrial applications, particularly where ample space is required to attach multiple lines or cables. It is suitable for industrial uses only and not for mooring applications.
It is up to 60% more resistant and stronger compared to traditional 316L stainless steel shackles, offering exceptional working and breaking load capacity.
11247 - Wichard Marine Wichard HR Stainless Steel Bow Shackle - 16mm Diameter
