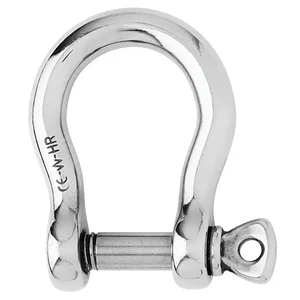

11248 - Wichard Marine Wichard HR Bow Shackle - 20mm Diameter - 25/32"

HR Bow Shackle - 20mm Diameter - WLL 8800kg

Product Overview:

The Wichard HR Bow Shackle is crafted from high-quality HR stainless steel (17-4 PH), ensuring exceptional strength and resistance. This shackle is designed for industrial applications, suitable for handling heavy loads while providing a reliable connection for cables and lines.

Features:

• Constructed from forged HR stainless steel grade (17-4 PH).
• Superior working load limit and breaking load capabilities.
• Up to 60% more resistant than standard 316L stainless steel shackles.
• Working Load Limit (WLL) specifically for industrial use (lifting purposes).
• CE marking for compliance and safety assurance.

Applications:

• Ideal for high load applications.
• Suitable for tasks requiring ample room to maneuver.
• Facilitates the attachment of multiple lines or cables.
• Not intended for mooring applications.

Specifications:

• Materials: HR 17-4 PH stainless steel.
• Working Load: 19400 lb (8800 kg).
• WLL: 12340 lb (5600 kg).
• Breaking Load: 61720 lb (28000 kg).
• Weight: 2.229 lb (1.011 kg).

Dimensions:

• A: 3 5/32" (80 mm).
• B: 1 37/64" (40 mm).
• C: 25/32" (20 mm).
• D: 1 37/64" (40 mm).
• D diameter: 25/32" (20 mm).
• E: 45/64" (18 mm).
• M: 3 15/16" (100 mm).

Caption:

• Working Load (WL): For nautical applications.
• Working Load Limit (WLL): For industrial purposes only. Safety factor is 5 times the breaking load: WLL = Breaking load / 5.
• High Resistance (HR) design.

*Sold as an individual unit.

The Wichard HR Bow Shackle (part number 11248) is an industrial-grade lifting shackle designed for high-load applications. Constructed from forged HR 17-4 PH stainless steel, it offers enhanced strength and resistance compared to standard 316L stainless steel shackles. This component is engineered for IT and industrial environments requiring reliable connections for heavy loads, cables, or multiple lines. It features a Working Load Limit (WLL) of 12,340 lb (5600 kg) for industrial use and a breaking load of 61,720 lb (28000 kg), ensuring a safety factor of 5. The shackle's design provides ample room for maneuvering and attaching multiple lines, making it suitable for various lifting scenarios. It is CE marked, indicating compliance with safety standards for industrial lifting purposes. This shackle is not intended for mooring applications.
