TAE1-56R-10 - Pacer Group Pacer Tinned 1 AWG Closed-End Lugs - 5/16" Stud - 10 Pack

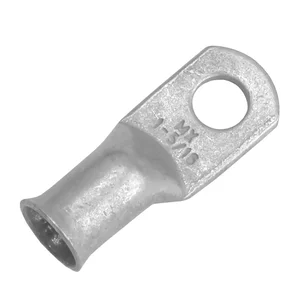

Pacer Tinned 1 AWG Closed-End Lugs - 5/16" Stud - 10 Pack

For reliable connections in electrical systems, Pacer's closed-end tinned lugs ensure longevity and strength. Crafted from seamless 99.9% copper and tin-plated to prevent corrosion, these lugs are perfect for marine and outdoor applications, providing waterproof connections when used with epoxy heat shrink. With no exposed seams, these lugs offer enhanced durability. Simply strip the wire to the appropriate length, slide on the lug, and crimp for a secure fit. Available in a variety of sizes, Pacer's lugs are your go-to choice for quality and performance.

Specifications:

• Wire AWG: 1
• Stud Size: 5/16�
• Length: 1.719�
• Width: 0.692�
• Clearance: 0.406�
• Package Size: 10

The Pacer Tinned 1 AWG Closed-End Lugs, part number TAE1-56R-10, are designed for creating secure and corrosion-resistant electrical connections. These lugs are constructed from 99.9% seamless copper and feature tin plating, which enhances their durability and resistance to environmental factors. They are suitable for applications requiring robust connections, particularly in marine and outdoor environments where moisture and corrosion are concerns. The closed-end design, combined with appropriate heat shrink, can facilitate waterproof connections. These lugs are specified for 1 AWG stranded copper wire and accommodate a 5/16-inch stud. They are rated for 600V electrical systems and can be secured via crimping or soldering. The design includes a controlled flare for easier cable insertion and a larger pad area for improved electrical contact, addressing the need for reliable and long-lasting electrical system integrity.
