TDT06F-6RS - Pacer Group DT Deutsch Plug Repair Kit for 14-18 AWG - 6 Position

DT Deutsch Plug Repair Kit for 14-18 AWG - 6 Position

This repair kit is designed for use with DT Deutsch connectors and incorporates size 16 contacts suitable for 14 AWG wire applications. These robust connectors are crafted for both functionality and reliability, providing electrical designers with versatile options for wire gauge applications ranging from 20 to 14 AWG.

Key Features:

• Comprehensive kit includes all necessary components to assemble a connector
• Includes one to two extra terminals for convenience
• Cavity plugs are provided to seal unused circuits

Ideal Applications:

• Wire-to-wire connections
• Designed for reliable performance in rugged environments

Compliance and Safety:

• Ingress Protection rating: IP68 and IP6K9K
• Meets EU RoHS and ELV directives
• UL-94 recognized materials

Specifications:

• Number of Cavities: 6
• Durable plastic housing reinforced with glass fiber
• Contact size rated for 16 (13 amp)
• Wires: 14 AWG accommodated
• Includes sockets for optimal connections
• Operating temperature range: -55°C to 125°C

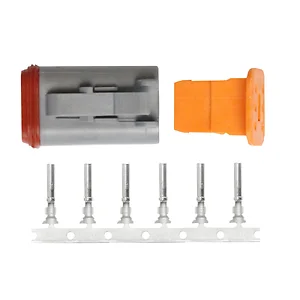

Kit Contents:

• (1) 6 position plug
• (1) 6 position wedge lock
• (8) sockets
• (3) cavity plugs

The Pacer Group DT Deutsch Plug Repair Kit, part number TDT06F-6RS, is a specialized solution for maintaining and repairing electrical connections utilizing DT Deutsch connectors. This kit is suitable for IT professionals and technicians working with wire-to-wire connections in demanding environments. It addresses common repair needs by providing all necessary components, including a 6-position plug, a 6-position wedge lock, eight sockets, and three cavity plugs. The included size 16 contacts are designed for 14-18 AWG wire applications, accommodating wire gauges from 20 to 14 AWG. Constructed with durable plastic housing reinforced with glass fiber, the connectors offer an IP68 and IP6K9K ingress protection rating and operate within a temperature range of -55�C to 125�C. This kit helps ensure reliable performance in rugged conditions.
