100 Available / 8 Sold
Condition: New

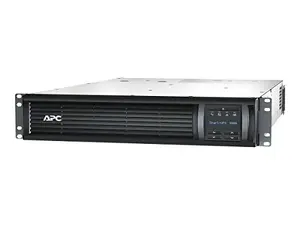

UPS (rack-mountable) - AC 120 V - 2.7 kW - 3000 VA - Ethernet RS-232 USB - output connectors: 8 - 2U - black - with APC UPS Network Management Card
The APC SMART-UPS 3000VA LCD RM 2U 120V WITH NETWORK CARD is a rack-mountable uninterruptible power supply (UPS) designed to provide backup power and surge protection for critical IT equipment. This unit, part number SMT3000RM2UNC, delivers 2.7 kW / 3000 VA of power at 120V, utilizing a line-interactive topology with a sine wave output. It is suitable for businesses requiring reliable power continuity for servers, networking devices, and other sensitive electronics within a rack environment. The UPS features eight output connectors, including two NEMA 5-20R and six NEMA 5-15R, all with battery backup. An integrated APC UPS Network Management Card facilitates remote monitoring and control via Ethernet, complementing its RS-232 and USB interface ports. The unit's 2U form factor and black finish integrate into standard rack setups. It addresses potential downtime caused by power fluctuations or outages, ensuring operational stability for connected systems.
Output
Output power capacity
2.7kWatts / 2.88kVA
Max Configurable Power (Watts)
2.7kWatts / 2.88kVA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(2) NEMA 5-20R (Battery Backup)
(6) NEMA 5-15R (Battery Backup)
Transfer Time
4ms typical : 8ms maximum
Input
Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA L5-30P
Cord Length
8ft (2.44meters)
Input voltage range for main operations
82 - 144V
Input voltage adjustable range for mains operation
75 - 154V
Number of Power Cords
1
Batteries Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
RBC43
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications Management
Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Pre-Installed SmartSlot Cards
AP9631
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
459Joules
Physical
Color
Black
Environmental
Operating Temperature
32 - 104 oF (0 - 40 oC)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 - 45 oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
348.0BTU/hr
Conformance
Approvals
CSA, FCC Part 15 Class A, UL 1778
Equipment protection policy
Lifetime : 150000
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Battery Directive
Compliant
Proposition 65 Warning
Available in Documentation tab
Item Dimension ( L inchxW inchxH inch)
39 x 10 x 24 Weight
113.90 lb Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery
The UPS provides eight output connections: two NEMA 5-20R and six NEMA 5-15R, all of which offer battery backup.
This UPS includes a pre-installed APC UPS Network Management Card (AP9631), which enables remote monitoring and control via an Ethernet connection. It also features RJ-45 Serial and USB interface ports.
This rack-mountable UPS is designed for IT environments to provide backup power and surge protection for critical equipment such as servers, network devices, and other sensitive electronics, ensuring operational continuity during power disturbances.
The maintenance-free sealed lead-acid battery has an expected life of 3 to 5 years. The typical recharge time for the battery is 3 hours.
SMT3000RM2UNC - Apc - Schneider Electric APC SMART-UPS 3000VA LCD RM 2U 120V WITH NETWORK CARD
