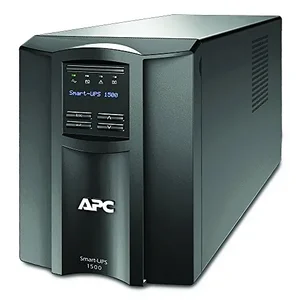

APC SMT1500C 1500VA Smart UPS LCD 120V with Remote Monitoring App
The APC SMART-UPS 1500VA LCD 120V WITH SMARTCONNECT is a line-interactive uninterruptible power supply (UPS) designed to provide reliable power protection for business IT equipment. This unit delivers 1.0 KWatts / 1.44 kVA of output power capacity with a nominal output voltage of 120V and a sine wave waveform. It features eight NEMA 5-15R battery backup outlets, ensuring critical devices remain operational during power fluctuations or outages. The SMT1500C is suitable for small to medium business environments requiring stable power delivery and protection against surges, sags, and complete blackouts. Its remote monitoring app capability allows for management and status checks, addressing the need for off-site oversight of power infrastructure. The UPS helps maintain business continuity by safeguarding sensitive electronics from power disturbances.
Output
Output power capacity:1.0 KWatts / 1.44 kVA
Max Configurable Power (Watts):1.0 KWatts / 1.44 kVA
Nominal Output Voltage:120V
Output Voltage Distortion:Less than 5%
Output Frequency (sync to mains):50/60Hz +/- 3 Hz
Other Output Voltages:110, 127
Topology:Line Interactive
Waveform type:Sine wave
Output Connections:(8) NEMA 5-15R (Battery Backup)
Transfer Time:6ms typical : 10ms maximum
Input
Nominal Input Voltage:120V
Input frequency:50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:NEMA 5-15P
Cord Length:6ft ( 1.83meters )
Input voltage range for main operations:82 - 144V
Input voltage adjustable range for mains operation:75 - 154V
Number of Power Cords:1
Other Input Voltages:110, 127
Batteries and Runtime
Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time:3hour(s)
Replacement Battery:SMT1500NC
Expected Battery Life (years):3 - 5
RBC Quantity:1
Runtime:View Runtime Graph
View Runtime Chart
Efficiency:View Efficiency Graph
Communications and Management
Interface Port(s):SmartSlot , USB
Control panel:Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO):--
Available SmartSlotTM Interface Quantity:1
Surge Protection and Filtering
Surge energy rating:680Joules
Filtering:Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Color:Black
Environmental
Operating Temperature:32 - 104 oF ( 0 - 40 oC )
Operating Relative Humidity:0 - 95 %
Operating Elevation:0-10000ft ( 0-3000meters )
Storage Temperature:-15 - 45 oC
Storage Relative Humidity:0 - 95 %
Storage Elevation:0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit:45.0dBA
Online thermal dissipation:225.0BTU/hr
Conformance
Approvals:CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
Equipment protection policy:Lifetime : 150000
Standard warranty:3 years repair or replace (excluding battery) and 2 year for battery
Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Item Dimension (L inchxW inchxH inch)
13 x 13 x 24 Weight
59.92lb Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery
The UPS provides eight NEMA 5-15R output connections, all of which offer battery backup for connected devices.
The typical recharge time for the maintenance-free sealed Lead-Acid battery is 3 hours.
The expected battery life for the included maintenance-free sealed Lead-Acid battery is between 3 to 5 years.
The UPS includes SmartSlot and USB interface ports for communication and management, in addition to a multi-function LCD status and control console.
