Special Order
Ships in 1-2 weeks
Condition: New

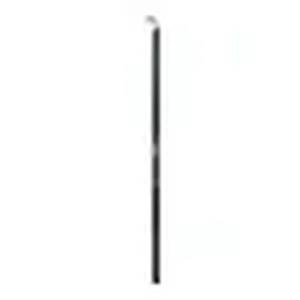

Power distribution unit (rack-mountable) - AC 120/208 V - 5760 VA - input: NEMA L14-30 - output connectors: 30 - 0U - black - for P/N: AR3100
The APC AP8870 is a vertical (0U) rack-mountable power distribution unit designed for IT environments requiring robust power delivery. This PDU provides 30 output connectors, including IEC 320 C19, IEC 320 C13, and NEMA 5-20R, to distribute power to various rack-mounted equipment. It supports nominal input voltages of 120V and 208V, with a NEMA L14-30P input connection and a 9.84ft cord. With a load capacity of 5760VA and overload protection, it helps ensure stable power to connected devices. This unit is suitable for businesses needing to efficiently power multiple devices within a rack, particularly compatible with P/N: AR3100, while optimizing rack space with its 0U form factor. It addresses the challenge of powering dense IT infrastructure by providing a centralized and protected power distribution point.
Output
Nominal Output Voltage:120V
Other Output Voltages:240
Overload Protection:Yes
Maximum Total Current Draw:24
Output Connections:(2) IEC 320 C19 (Battery Backup)
(12) IEC 320 C13 (Battery Backup)
(16) NEMA 5-20R (Battery Backup)
Input
Nominal Input Voltage:120V , 208V
Input frequency:50/60 Hz
Input Connections:NEMA L14-30P
Cord Length:9.84ft ( 3meters )
Number of Power Cords:1
Load Capacity:5760VA
Maximum Input Current:30A
Regulatory Derated Input Current (North America):24A
Physical
Color:Black
Environmental
Operating Temperature:23 - 113 oF ( -5 - 45 oC )
Operating Relative Humidity:5 - 95 %
Operating Elevation:0-10000ft ( 0-3000meters )
Storage Temperature:-25 - 65 oC
Storage Relative Humidity:5 - 95 %
Storage Elevation:0-50000ft ( 0-15000meters )
Conformance
Approvals:cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed
Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Battery Directive:Compliant
Battery Notes:ts_Battery_Notes
Item Dimension (L inchxW inchxH inch)
5 x 79 x 7 Weight
17.00lb Warranty Information
2 years repair or replace
The APC AP8870 PDU requires a nominal input voltage of 120V or 208V. It connects via a NEMA L14-30P input connection, and includes a 9.84ft power cord.
This PDU offers 30 output connections in total. These include two IEC 320 C19, twelve IEC 320 C13, and sixteen NEMA 5-20R outlets, all with battery backup capability.
The AP8870 has a load capacity of 5760VA. It supports a maximum input current of 30A, with a regulatory derated input current of 24A for North America, and a maximum total current draw of 24A.
Yes, this power distribution unit is designed for use with rack enclosures and is specifically noted as compatible with P/N: AR3100. Its vertical (0U) form factor allows for efficient rack space utilization.
AP8870 - Apc - Schneider Electric POWER DISTRIBUTION UNIT - VERTICAL (0U) - BLACK - INPUT VOLTAGE: 120 V-
