SMX3000RMLV2U - Apc - Schneider Electric NEW APC UPS EXT RUN 3000VA RACK 120V

21 Available / 22 Sold
Condition: New

$2,596.44  $3,505.19

AUTHORIZED
Need 10+? Request a volume quote

Product Overview

UPS - AC 120 V - 2.7 kW - 3000 VA - RS-232 USB - output connectors: 7 - 2U - black

Expert Overview

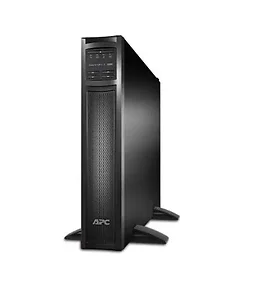

The APC UPS EXT RUN 3000VA RACK 120V is an uninterruptible power supply designed for IT environments requiring reliable power protection. This 2U rack-mountable unit delivers 2700 Watts / 3000 VA of power, operating at an AC 120V nominal output. It provides essential backup power and surge protection for critical equipment, ensuring continuity during power fluctuations or outages. With a transfer time of 2-4 ms, it offers seamless transition to battery power. The unit features seven output connectors, including NEMA 5-15R, NEMA 5-20R, and NEMA L5-30R, accommodating various devices. Communication is supported via RS-232 and USB, with an available SmartSlot for additional management options. The SMX3000RMLV2U is suitable for businesses seeking to protect servers, networking gear, and other sensitive electronics from power disturbances, minimizing downtime and data loss. Its maintenance-free sealed lead-acid battery recharges in approximately 3 hours.

Technical Specifications

Output
Output Power Capacity :2700 Watts / 3000 VA
Max Configurable Power :2700 Watts / 3000 VA
Nominal Output Voltage :120V
Efficiency at Full Load :98%
Output Voltage Distortion :Less than 5% at full load
Output Frequency (sync to mains) :47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Waveform Type :Sine wave
Output Connections :
(3) NEMA 5-15R
(3) NEMA 5-20R
(1) NEMA L5-30R Input
Nominal Input Voltage :120V
Input Frequency :50/60 Hz +/- 3 Hz (auto sensing)
Input Connections :NEMA L5-30P
Cord Length :8 feet (2.44 meters)
Transfer Time :2-4 ms Batteries and Runtime
Battery Type :Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time :3 hour(s)
Replacement Battery :APCRBC117 Communications andnagement
Interface Port(s) :SmartSlot
Available SmartSlot Interface Quantity :1
Control panel :LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) :Yes Surge Protection and Filtering
Surge energy rating :540 Joules
Filtering :Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Regulatory Approvals :
BSMI,CSA,EN 50091-2,EN 55022 Class A,FCC Part 15 Class A,NOM,TUV,UL 1778,VCCI Class A Item Dimension (L"xW"xH"):
9.58 x 23.48 x 34.23

Weight:
99.79 lb

Warranty Information
2 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • APC - Schneider Electric
  • SMX3000RMLV2U
  • B004F05ITY
  • 731304268550
  • New
  • 105 lbs
  • 41 X 25 X 10
  • Today - Jul 17, 2026
  • Dec 21, 2010
  • Yes
  • India
Product Identifiers: Brand: Apc - Schneider Electric • Part #: SMX3000RMLV2U • UPC: 731304268550 • ASIN: B004F05ITY • Category: Uninterruptible Supplies • TAA Compliant

Frequently Asked Questions

What types of output connections does this UPS provide?

The UPS offers three NEMA 5-15R outlets, three NEMA 5-20R outlets, and one NEMA L5-30R outlet, providing a range of connection options for different equipment.

What is the typical battery recharge time for this unit?

The typical recharge time for the maintenance-free sealed Lead-Acid battery is 3 hours, ensuring the unit is ready for subsequent power events.

What is the power capacity of this UPS?

This UPS has an output power capacity of 2700 Watts / 3000 VA, making it suitable for supporting multiple devices or higher-power equipment.

Does this UPS include an Emergency Power Off (EPO) feature?

Yes, the UPS is equipped with an Emergency Power Off (EPO) feature, allowing for immediate shutdown of the unit in critical situations.
