PF AN NVHF00006T - Scout 3' Stainless VHF Whip Antenna 3dB w/5M RG-58 Coax KS23A

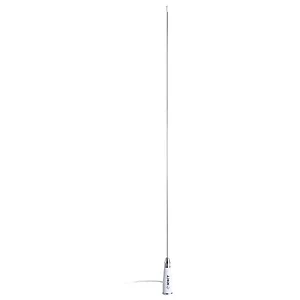

3.3' Stainless VHF Whip Antenna 3dB with 5M RG-58 Coax KS23A

Scout has designed the KS-23A antenna specifically for small boats and RIBs, which require a light, flexible, resistant, and high-performance antenna. The KS-23A brings all these features together in only 90 cm in length.

The electropolished stainless steel whip guarantees high flexibility and resistance; moreover, it can be easily removed by hand whenever needed. The design of the antenna is cool and smooth as needed for small boats and RIBs. Standard thread 1” x 14.

Features:

• Electropolished stainless steel whip – removable
• Extra flexible
• 5 m coaxial cable RG-58 CU MIL

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• Electrical length: 1/2 λ
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: 3 dB
• Max power input: 50 W
• DC ground: Yes
• Whip material: Stainless steel
• Coaxial cable: 5 m RG-58 CU MIL
• Mounting: 1″ x 14 thread
• Length: 0,9 m (3′)
• Weight: 0,23 kilo

The Scout 3.3' Stainless VHF Whip Antenna, part number PF AN NVHF00006T, is a marine/air band radio antenna designed for small boats and RIBs. This antenna provides VHF communication capabilities within the 156-162 MHz frequency range. It features an electropolished stainless steel whip that offers flexibility and resistance, and it can be manually removed. The antenna has a 1/2 ? electrical length and a vertical polarization, with a gain of 3 dB and a maximum power input of 50 W. It includes a 5-meter RG-58 CU MIL coaxial cable for connection. The design prioritizes a light, flexible, and resistant form factor suitable for smaller vessels. Its 1" x 14 standard thread allows for common mounting configurations. This antenna addresses the need for reliable VHF communication on smaller marine craft where space and durability are considerations.
