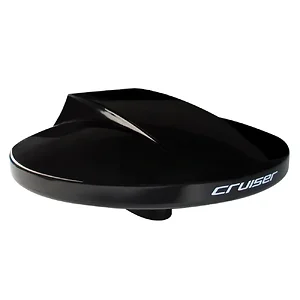

PF AN NTV003 - Scout Cruiser 10" Black TV Antenna Omnidirectional w/20M, 75 ohms, Cable

Cruiser 10" Black TV Antenna Omnidirectional with 20M, 75 ohms, Cable

The CRUISER is an omnidirectional antenna designed to receive all available analogue and digital terrestrial TV, FM, and DAB signals through a 360-degree radius, made specifically for the marine environment and for all types of vessels.

Omnidirectional design eliminates the time needed to locate the direction of a local TV and radio transmitter. The CRUISER is equipped with the Scout SEA-BOOST, a low-noise amplifier with variable gain control that increases the strength of incoming digital signals.

The exclusive design, the compact size of only 25 cm in diameter, and the superior picture quality make the Scout CRUISER the perfect choice for boaters who want to enjoy premium TV and radio on board.

Features:

• Superior picture quality
• Compact size – 25 cm diameter
• Including a 12/24V high-gain amplifier
• Exclusive design Made in Italy
• Mounting set included

Specifications:

• Reception: Omnidirectional 360°
• Frequency Range: 40-860 MHz
• Impedance: 75 ohms
• Channels: 2-69
• Gain control: 0-18 dB
• Input power: 12-24V x 50mA DC
• Noise: <4 dB
• Amplifier output: 2
• Connectors: F
• Antenna diameter: 25 cm
• Weight: 560 gr
• Material: UV-resistant ASA

The Scout Cruiser 10" Black TV Antenna (part number PF AN NTV003) is an omnidirectional antenna engineered for marine environments. It is designed to receive analogue and digital terrestrial TV, FM, and DAB signals across a 360-degree radius, making it suitable for various vessel types. This antenna eliminates the need for manual alignment to locate broadcast transmitters. It integrates the Scout SEA-BOOST, a low-noise amplifier with variable gain control (0-18 dB) to enhance incoming digital signals. The unit operates on 12-24V DC input power and features a compact 25 cm diameter. It is intended for boaters seeking to access TV and radio broadcasts while on board, providing reception for channels 2-69 within a frequency range of 40-860 MHz and an impedance of 75 ohms.
