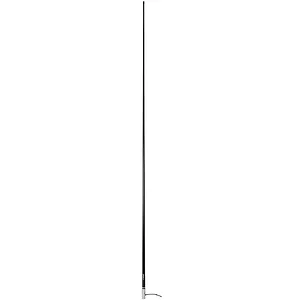

PF AN NVHF00009T - Scout 8' Black VHF Antenna 6dB Stainless Steel Ferrule w/5M RG-58 Coax Includes PL-259 KS-42

8' Black VHF Antenna 6dB Stainless Steel Ferrule with 5M RG-58 Coax Includes PL-259 KS-42

Scout celebrates the 30th anniversary with the collection of antennas Black Edition. These design antennas fit perfectly with black boats, grey boats, and with metal/aluminum finishings.

The KS-42 Black Edition is built with a heavy-duty 1,5 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique. Standard thread 1” x 14, chrome brass ferrule. The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board. Suggested for medium and large-sized boats.

Features:

• Black Edition
• Foam injected – 100% WATERPROOF – IP69
• 5 m coaxial cable RG-58 CU MIL

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• Electrical length: 1/2 λ
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: 6 dB
• Max power input: 50 W
• DC ground: Yes
• Whip material: Fiberglass
• Coaxial cable: 5 m (16′) RG-58 CU MIL
• Mounting: 1″ x 14 thread
• Length: 2,4 m (8′)
• Weight: 0,86 kilo

The Scout 8' Black VHF Antenna, part number PF AN NVHF00009T, is a marine/air band radio antenna designed for reliable VHF communication. This antenna features an 8-foot fiberglass whip, foam-injected for 100% waterproofing, and a stainless steel ferrule with a standard 1" x 14 thread for mounting. It operates within a frequency range of 156-162 MHz with a gain of 6 dB and an impedance of 50 ohms. The antenna is supplied with 5 meters of RG-58 CU MIL coaxial cable and a PL-259 connector, facilitating installation. It is suitable for medium to large-sized boats where consistent VHF radio performance is required for navigation, safety, and operational communications. The black finish is intended to complement vessels with black, grey, or metal/aluminum aesthetics.
