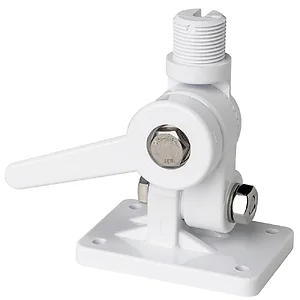

PF AC NBASE001 - Scout Four-Way Nylon Ratchet Mount - White

Four-Way Nylon Ratchet Mount - White

The PA-3 mount is designed for installing the antenna on horizontal, inclined, and vertical surfaces, thanks to its 4-way adjustment that allows it to tilt the antenna correctly. Constructed in UV-resistant reinforced nylon, it allows the antenna to fold down with a simple release of the snap handle. Assembled with A4 stainless steel screws and bolts, it guarantees extraordinary durability and high resistance to rust and salt.

The PA-3 base has a specific slot for the passage of the cable that allows the use of cables with pre-installed connectors. The 6.5 mm wide passage is ideal for coaxial cables such as RG-58, RG-59, and similar.

In addition, the PA-3 base has a safety locking key for the cable passage, which guarantees further strength and completeness. The PA-3 base is ideal for mounting all marine antennas with standard 1 “x 14 threads, including all QuickFit range antennas.

Specifications:

• Material: UV-resistant nylon
• Screws & Bolts: Inox A4
• Color: White
• Weight: 390g

The Scout Four-Way Nylon Ratchet Mount (part number PF AC NBASE001) is a white, UV-resistant nylon mounting solution designed for securely installing antennas on various surfaces. Its four-way adjustment mechanism allows for precise antenna tilting, accommodating horizontal, inclined, and vertical mounting orientations. A snap handle facilitates easy antenna fold-down. The mount is constructed with A4 stainless steel screws and bolts, providing durability and resistance to rust and salt exposure. It features a 6.5 mm wide cable passage, suitable for coaxial cables like RG-58 and RG-59, and includes a safety locking key for cable security. This mount is compatible with marine antennas utilizing standard 1" x 14 threads, including those from the QuickFit range. It is suitable for IT environments requiring robust antenna placement.
