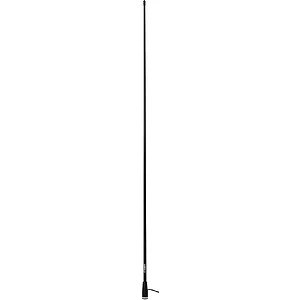

PF AN NVHF00004T - Scout 5' Black VHF Antenna 3dB Nylon Ferrule w/5M RG-58 Coax KS-22

5' Black VHF Antenna 3dB Nylon Ferrule with 5M RG-58 Coax KS-22

There’s no need to introduce this classic of marine communication. The antenna that has become a standard for users now meets the excellence of the patent 100% WATERPROOF.

It’s built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with a high gloss anti-UV filter to prevent color deterioration.

The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.

Features:

• Foam injected – 100% WATERPROOF – IP69
• Anti–UV high gloss finish
• 5 m coaxial cable RG 58 CU MIL

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• Electrical length: 1/2 λ
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: 3 dB
• Max power input: 50 W
• DC ground: Yes
• Whip material: Fiberglass
• Coaxial cable: 5 m (16,4′) RG 58 CU MIL
• Mounting: 1″ x 14 thread
• Length: 1,5 m (5′)
• Weight: 0,39 kilo

The Scout 5' Black VHF Antenna, part number PF AN NVHF00004T, is a marine/air band radio antenna designed for reliable VHF communication. This antenna is suitable for IT buyers procuring equipment for maritime or aviation applications requiring a dedicated VHF solution. It features a 1.4 mm thick fiberglass whip, foam-injected for 100% waterproofing with an IP69 rating, and an anti-UV high gloss finish to mitigate color degradation. The antenna operates within a frequency range of 156-162 MHz with a 3 dB gain and a maximum power input of 50 W. It is supplied with 5 meters of RG-58 CU MIL coaxial cable and a PL-259 connector, facilitating installation. This product addresses the need for a durable and waterproof VHF antenna solution in environments where consistent marine or air band radio communication is critical.
