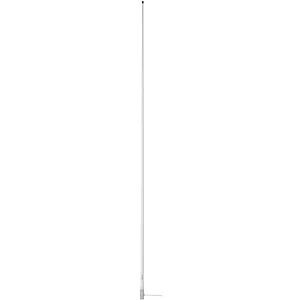

Scout PF AN NVHF00007T 8' White VHF Antenna 6dB Stainless Steel Ferrule w/5M RG-58 Coax Includes PL-259 KS-42

8' White VHF Antenna 6dB Stainless Steel Ferrule with 5M RG-58 Coax Includes PL-259 KS-42

The classical 2,4 m (8’) VHF marine antenna has been totally redesigned by Scout to set a new benchmark in terms of reliability and performance.

The KS-42 is built with a heavy-duty 1,5 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique. Standard thread 1” x 14, chrome brass ferrule. The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board. Suggested for medium and large-sized boats.

Features:

• Color: White
• Foam injected – 100% WATERPROOF – IP69
• 5 m coaxial cable RG-58 CU MIL

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• Electrical length: 1/2 λ
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: 6 dB
• Max power input: 50 W
• DC ground: Yes
• Whip material: Fiberglass
• Coaxial cable: 5 m (16′) RG-58 CU MIL
• Mounting: 1″ x 14 thread
• Length: 2,4 m (8′)
• Weight: 0,86 kilo
