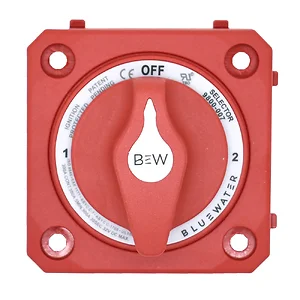

9800-007-10 - Bluewater Red Dual Battery Selector Switch

Red Dual Battery Selector Switch

This selector switch is designed for seamless control of dual battery setups, allowing you to choose between Battery 1, Battery 2, both, or none. Ideal for managing power flow in marine and RV applications, it enables reliable charging and backup power management all from one accessible point.

Featuring ignition protection for safety on gasoline-powered vessels, this switch can be mounted on surfaces, front panels, or rear panels based on your needs. Its robust design includes 3/8″-16 tin-plated copper studs to ensure maximum conductivity and resistance to corrosion, supporting both 3/8″ and M10 ring terminals.

Constructed from marine-grade non-corrosive metals and reinforced polycarbonate, this switch is built to endure tough environments. The tactile knob allows easy position confirmation by feel, and it comes with international ON/OFF legends as well as an ICON label set for clear circuit identification.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

The BlueWater Red Dual Battery Selector Switch, part number 9800-007-10, provides centralized power management for dual battery configurations. This component allows users to select power from Battery 1, Battery 2, both simultaneously, or to disconnect all power. It is engineered for environments requiring robust power control, such as marine vessels and RVs, facilitating reliable charging and backup power management. The switch features ignition protection, making it suitable for gasoline-powered applications. Its construction includes marine-grade non-corrosive metals and reinforced polycarbonate, designed for durability in demanding conditions. Connectivity is managed via 3/8"-16 tin-plated copper studs, compatible with both 3/8" and M10 ring terminals. Mounting options include surface, front panel, or rear panel installation, offering flexibility for integration into various setups. The tactile knob and included international ON/OFF legends, along with an ICON label set, aid in clear operational identification.
