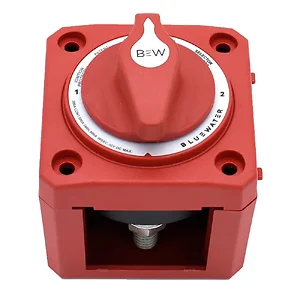

9800-008-11 - Bluewater OFF/1/2 Battery Switch - Surface Mount - Red

OFF/1/2 Battery Switch - Surface Mount - Red

This 1/2/Off switch offers seamless selection between two power sources, with an Off position for isolation. It’s a reliable solution for switching between primary and secondary batteries in compact or mobile applications, such as boats, RVs, or service vehicles.

Ignition-protected and safe for use aboard gasoline-powered boats, the 1/2/Off switch is built for flexibility with a case design that supports surface, front panel, or rear panel mounting.

To ensure lasting performance, the switch features 3/8″-16 tin-plated copper studs for strong conductivity and corrosion resistance, compatible with both 3/8″ and M10 ring terminals. A 7/8″ stud length accommodates multiple cable terminals when needed.

Constructed from marine-grade, non-corrosive metals and a reinforced polycarbonate housing, it’s made to endure harsh environments. Tactile knob textures allow you to identify the position by feel, and both international ON/OFF legends and an icon label set are included for easy circuit labeling.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

The BlueWater OFF/1/2 Battery Switch, part number 9800-008-11, is a surface-mount toggle switch designed for managing power distribution from two distinct sources. This unit facilitates selection between a primary battery, a secondary battery, or an off position for complete isolation. It is suitable for compact and mobile applications, including marine vessels, recreational vehicles, and service vehicles, particularly those operating with gasoline engines due to its ignition-protected design. The switch features 3/8"-16 tin-plated copper studs, providing robust conductivity and corrosion resistance, compatible with both 3/8" and M10 ring terminals. Its 7/8" stud length supports multiple cable connections. Constructed from marine-grade, non-corrosive metals and reinforced polycarbonate, this switch is built for durability in demanding environments. It includes tactile knob textures for position identification and international ON/OFF legends with an icon label set for clear circuit labeling. The design supports surface, front panel, or rear panel mounting configurations.
