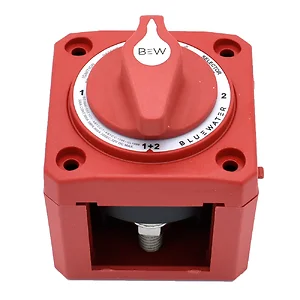

9800-007-11 - Bluewater Off/1/2/Both Battery Switch - Surface Mount - Red

Off/1/2/Both Battery Switch - Surface Mount - Red

Designed for dual battery setups, this 1/2/Both selector switch gives you full control to route power from Battery 1, Battery 2, both, or neither. It’s ideal for managing power flow, setting up backup systems, and charging multiple battery banks— all from a single, intuitive control point.

Ignition-protected and safe for installation aboard gasoline-powered boats, this 1/2/Both switch is perfect for both marine and RV applications. The versatile case design supports surface, front panel, or rear panel mounting.

Engineered for performance, it includes 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepting both 3/8″ and M10 ring terminals. The 7/8″ stud length allows connection of multiple cable terminals with ease.

Built to withstand harsh environments, the switch is made from non-corrosive marine-grade metals and molded in reinforced polycarbonate for added durability. Tactile knob textures let you confirm position by feel alone, and the switch includes both international ON/OFF legends and an ICON label set for quick circuit identification.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

The BlueWater Off/1/2/Both Battery Switch, part number 9800-007-11, is a surface-mount selector designed for managing dual battery configurations. This switch allows users to route power from Battery 1, Battery 2, both, or neither, providing control over power flow, backup systems, and multi-bank charging. It is suitable for marine and RV applications, including gasoline-powered boats, due to its ignition-protected design. The versatile case supports surface, front panel, or rear panel mounting. Constructed with non-corrosive marine-grade metals and reinforced polycarbonate, it offers durability in harsh environments. The switch features 3/8"-16 tin-plated copper studs for conductivity and corrosion resistance, accommodating both 3/8" and M10 ring terminals. A 7/8" stud length facilitates multiple cable connections. It includes international ON/OFF legends and an ICON label set for clear identification.
