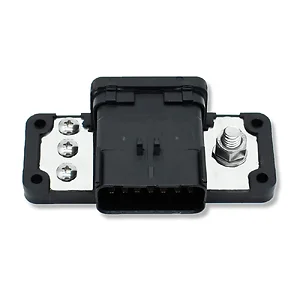

2314-B-001 - Bluewater FCI Busbar - 14 Position, 150A, IP68

FCI Busbar - 14 Position, 150A, IP68

This 14 Position FCI Busbar is engineered for robust performance in challenging environments. Designed for compatibility with FCI connectors, it offers secure wiring solutions ideal for marine, heavy equipment, and mobile installations facing severe vibration and moisture.

The busbar is built with high-grade materials for exceptional corrosion resistance, ensuring stable conductivity even in harsh conditions. Its resilient design minimizes the need for maintenance while providing reliable long-term operation.

Compact and user-friendly, this busbar simplifies the wiring process while safeguarding critical power circuits in demanding applications.

Specifications:

• Current Rating: 150A at 48V DC
• Number of Positions: Male 14 Positions
• Wire Gauge Range: 20 AWG to 12 AWG
• Terminal Size: 2.8 mm
• Housing Material: Polyamide (PA)
• Sealing Protection: IP68
• Temperature Rating: -40�C to +125�C
• Input Connector: Male 54201415
• Mate Connector: Female 54201411
• Plate Thickness: 2mm Copper, tin-plated
• Stud: Stainless Steel 3/8"
• Base: RETPU Overmolded
• Mounting Holes (4): 0.20"

The BlueWater 2314-B-001 FCI Busbar is a 14-position power distribution component designed for demanding industrial and mobile applications. Engineered to handle a continuous current of 150A at 48V DC, this busbar provides a secure and stable connection point for critical power circuits. Its IP68 sealing protection ensures resistance against dust and prolonged immersion, making it suitable for environments with severe vibration and moisture, such as marine, heavy equipment, and mobile installations. The unit features a polyamide housing, tin-plated copper plate, and stainless steel studs, contributing to its corrosion resistance and long-term operational reliability across a temperature range of -40�C to +125�C. It accommodates wire gauges from 20 AWG to 12 AWG, simplifying wiring processes while maintaining robust connectivity.
