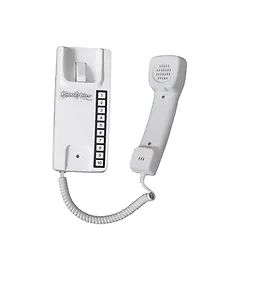

117-1010-8 - Newmar Power Newmar PI-10 Handset White

The Phone-Com intercom system provides direct, wired, point-to-point communication anywhere on the vessel. Voice contact to any phone in the system is as easy as lifting the receiver and pressing the call button. Phone-Com operates on 12 VDC. They are constructed of high-impact plastic and are available in either bright white or traditional black. Bulkhead mounting bracket is provided. Two versions are available:

PI-2: Designed for communication between only two points. A single call button sounds a buzzer and illuminates an indicator lamp on the companion phone. Available singly or as a set with 40' of interconnect wire, fuse, terminal lugs and mounting hardware.

PI-2 SET: Two station phone set, 40' interconnect wire, fuse, lugs, mounting hardware; 5 lbs.

PI-10:For multiple station calling capability. Up to 10 phones may be interconnected, and each phone has 10 call buttons. Sold individually-- see wiring requirements below.

Phone-Com Wiring: For PI-2, use 5 conductor wire. For PI-10, add 3 to the total number of stations to determine minimum number of conductors required.

Note: Phones are not waterproof and should be installed in a protected location

The Newmar PI-10 Handset (part number 117-1010-8) is a component of the Phone-Com wired intercom system, designed for point-to-point voice communication within a vessel. This handset supports multi-station setups, allowing up to 10 interconnected phones. Each PI-10 unit features 10 call buttons, enabling direct voice contact to any other phone in the system by lifting the receiver and pressing the corresponding button. Operating on 12 VDC, the PI-10 is constructed from high-impact plastic and comes in a bright white finish. A bulkhead mounting bracket is included for installation. This handset is suitable for environments requiring a dedicated, internal communication network where a robust, wired solution is preferred over wireless alternatives. It addresses the need for reliable voice contact in protected indoor locations, as the units are not waterproof.
