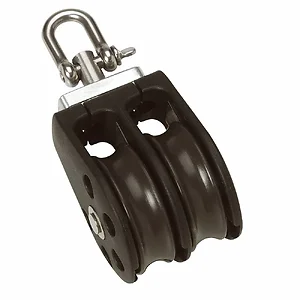

N02230 - Barton Marine Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel

Size 2 35mm Plain Bearing Pulley Block Double with Swivel

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

• Weight: 87g
• Dimensions: 83 × 39 × 38 mm
• Size: 2 (35MM)
• Block Type: Fixed Eye
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)

The Barton Size 2 Plain Bearing Pulley Block Double with Swivel, part number N02230, is a component designed for managing rope lines in various applications. This double-sheave block features a 35mm plain bearing, suitable for ropes up to 8mm in diameter. Constructed with an internal stainless steel frame, it offers a Safe Working Load (SWL) of 370kg and a Break Load of 740kg. Its lightweight design, at 87g, and compact dimensions (83 x 39 x 38 mm) make it suitable for installations where space and weight are considerations. This block is intended for users requiring reliable rope guidance and load support, particularly in environments where a fixed eye, plain bearing double pulley system is appropriate.
