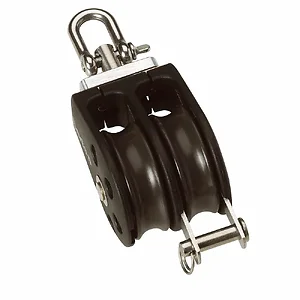

N02231 - Barton Marine Barton Size 2 35mm Plain Bearing Pulley Block Double Swivel & Becket

Size 2 35mm Plain Bearing Pulley Block Double Swivel & Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

• Weight: 99g
• Dimensions: 100 × 39 × 38 mm
• Size: 2 (35MM)
• Block Type: Fixed Eye + Becket
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)

The Barton Size 2 Plain Bearing Pulley Block (part number N02231) is a double-sheave block with a swivel and becket, designed for marine applications requiring reliable load management. Featuring two 35mm plain bearing sheaves, this block is suitable for ropes up to 8mm in diameter. It incorporates an internal stainless steel frame for durability and precision components to handle specified loads. With a Safe Working Load (SWL) of 370kg and a Break Load of 740kg, it provides robust performance for various rigging configurations. The lightweight design, weighing 99g, makes it practical for use on yachts where minimizing weight is beneficial. This block is intended for IT hardware resellers serving clients in the marine sector who require specific rigging components for their operational needs, offering a balance of performance and compact dimensions.
