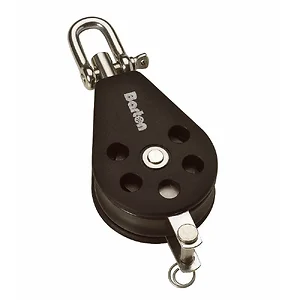

N02131 - Barton Marine Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel & Becket

Size 2 35mm Plain Bearing Pulley Block Single Swivel & Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

• Weight: 60 g
• Dimensions: 93 × 38 × 24 mm
• Size: 2 (35MM)
• Block Type: Swivel + Becket
• No. of Sheaves: Single
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
• Max rope diameter: 8mm (5/16")
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)

The Barton Size 2 Plain Bearing Pulley Block, part number N02131, is a single swivel and becket block designed for applications requiring reliable load management. Featuring a 35mm sheave, this component is suitable for ropes up to 8mm in diameter. It incorporates an internal stainless steel frame and precision components to support its stated load values. With a Safe Working Load (SWL) of 370kg and a Break Load of 740kg, it is engineered for tasks within these parameters. The block's lightweight design, at 60g, makes it a practical choice for various configurations where weight is a consideration. This product is intended for IT hardware resellers and their business clients who require specific rigging components for their operational needs, offering a straightforward solution for controlled lifting or tensioning applications.
