Condition: New

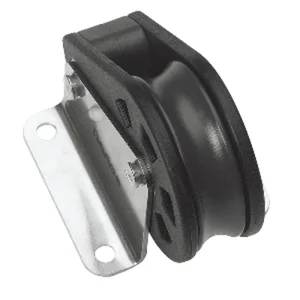

Series 2 Single Upright Block - 35mm
Plain Bearing Blocks
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
Specifications
The Barton Marine Series 2 Single Upright Block - 35mm is a plain bearing block designed for applications requiring reliable load management. This component features a precision-moulded acetal sheave that operates on a large diameter brass bearing, facilitating smooth operation even under significant loads. With a maximum rope diameter capacity of 8mm, it is suitable for various rigging and lifting tasks. The block offers a safe working load of 370kg (815lbs) and a breaking load of 740kg (1630lbs), providing a clear operational safety margin. Its compact dimensions, with a length of 80mm and a weight of 73g, allow for integration into systems where space and weight are considerations. This N02 150 block is intended for B2B buyers in sectors such as marine, industrial, or logistics, who require durable and efficient components for material handling or tensioning systems.
The Barton Marine Series 2 Single Upright Block is designed to accommodate a maximum rope diameter of 8mm.
This block has a safe working load of 370kg (815lbs), indicating the maximum load it can safely handle during operation.
The block utilizes a plain bearing system, featuring a precision-moulded acetal sheave running on a large diameter brass bearing for smooth function.
The block has a length of 80mm and weighs 73g. The sheave size is 35mm x 12mm.
N02 150 - Barton Marine Series 2 Single Upright Block - 35mm
