HE-MDRC54 - Heise Led Lighting Systems 54" Curved Marine LED Light Bar

Special Order
Ships in 1-2 weeks
Condition: New

$522.62  $705.54
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

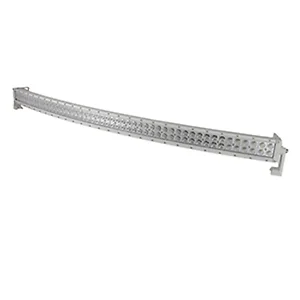

This HEISE Dual Row Curved LED Light Bar measures 54 inches and is specifically designed for marine applications. It combines powerful lighting capabilities with a robust construction suitable for harsh outdoor environments.

Technical Specifications

  • Specs:
    • Input Voltage: 10-30V DC
    • Wattage: 300 W
    • (100-3W CREE LEDs)
    • Raw Lumens: 24960
    • LUX at 10M: 1050
    • Color Temperature: 6000K
    • Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
  • Construction:
    • Housing Material: Die-Cast Aluminum Housing
    • Housing Color: White Coating with UV Inhibitors
    • Membrane: Gore
    • Lens Material: PC
    • Mounting Bracket: Die-Cast Aluminum
    • Hole Dimensions:
      • Brackets Turned Inward – 52.75 inches
      • Brackets Turned Outward – 55.25 inches
      • Mounting Bolt Drill – 25 inches
    • Height of Light Bar: 3 inches
    • Depth of Light Bar: 3.5 inches
    • Electronics: Integrated-Epoxy Encapsulated
    • Hardware: Stainless 316
  • Operation:
    • Operating Temperature: – 40 degrees C to +60 degrees C
    • Current Consumption: 16 Amps at 13.8 Volts
    • IP Rating: IP67
    • Protections: Reverse Polarity

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • HEISE LED Lighting Systems
  • HE-MDRC54
  • 086429348305
  • New
  • 18.7 lbs
  • 57 X 5 X 9
  • Aug 22, 2026
  • Jun 05, 2018
Product Identifiers: Brand: Heise Led Lighting Systems • Part #: HE-MDRC54 • UPC: 086429348305
