HE-INFIN14 - Heise Led Lighting Systems HEISE Infinite Series 14" RGB Backlite Dualrow Bar - 24 LED

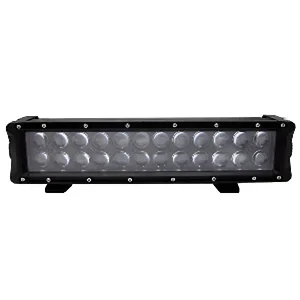

Infinite Series 14" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise's popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 36W
• Raw Lumens: 4560
• LUX @ 10M: 660
• Color Temperature: 6000K
• Beam Pattern: Spot(8°)

Construction:

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions: Brackets turned inward - 13.25"
• Brackets turned outward - 15.5"
• Mounting Bolt Drill - .25"
• Height of Light Bar Itself: 4.8"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption: 2.6 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE Infinite Series 14" RGB Backlite Dualrow Bar, part number HE-INFIN14, is an external lighting unit designed for environments requiring robust illumination and customizable accent lighting. This 14-inch bar features 24 LEDs, delivering 4560 raw lumens of pure white light at 6000K with an 8-degree spot beam pattern. It operates on a 10-30V DC input, consuming 2.6 amps at 13.8 volts.

Constructed with a die-cast aluminum housing and a polycarbonate lens, this unit is built to withstand challenging conditions, further supported by an IP67 rating and a military breather port for moisture management. Its integrated RGB backlight offers 16 million selectable colors, controllable via a mobile app. This feature is intended for users who require synchronized accent lighting across multiple Heise RGB products. The HE-CBRGB controller, necessary for RGB functionality, is sold separately. This product is suitable for IT buyers sourcing durable, high-output lighting solutions with integrated color customization capabilities for various operational needs.
