HE-FMDL1 - Heise Led Lighting Systems HEISE 6 LED Single Row Driving Light - Flush Mount

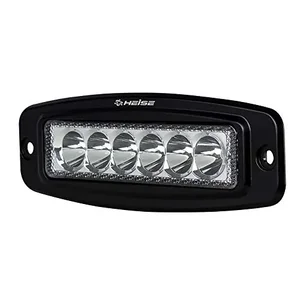

6 LED Single Row Driving Light - Flush Mount

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Stainless Steel
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316 and includes a gasket and a cut-out template

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE 6 LED Single Row Driving Light (part number HE-FMDL1) is a flush-mount lighting solution designed for integration into vehicle systems requiring supplemental illumination. Operating on a 10-30V DC input, it provides 1440 raw lumens from six 3W OSRAM LEDs, delivering a 6000K color temperature and a 25-degree spot beam pattern. Its construction features a black die-cast aluminum housing, a PC lens, and a stainless steel mounting bracket, ensuring durability in various operating conditions ranging from -40�C to +60�C. The unit is IP67 rated and includes reverse polarity protection. This light is suitable for IT hardware resellers supporting clients in sectors like fleet management, utility services, or specialized vehicle upfitting where robust, integrated auxiliary lighting is required for operational visibility and safety.
