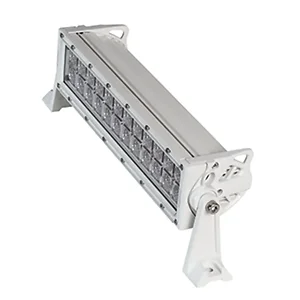

HE-MDR14 - Heise Led Lighting Systems HEISE Dual Row Marine LED Light Bar - 14"

Dual Row Marine LED Light Light Bar - 14"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 72W (24-3W CREE LEDs)
• Raw Lumens: 5400
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward – 13.50in
• Brackets turned outward – 14.75in
• Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 3.7amps at 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE Dual Row Marine LED Light Bar (HE-MDR14) is a 14-inch lighting solution designed for marine applications. It operates on a 10-30V DC input, providing 72W of power through 24 3W CREE LEDs. This light bar delivers 5400 raw lumens with a 6000K color temperature, utilizing a combo beam pattern that includes a 90-degree flood and an 8-degree spot. Its construction features a white-coated, UV-inhibited die-cast aluminum housing, a Gore� membrane, and a PC lens. The unit is epoxy-encapsulated for electronics protection and includes 316 stainless steel hardware. With an IP68 rating and reverse polarity protection, it is built to withstand marine environments, operating between -40�C and +60�C. This light bar is suitable for businesses requiring robust, weather-resistant illumination for marine vessels, addressing needs for reliable lighting in demanding conditions.
