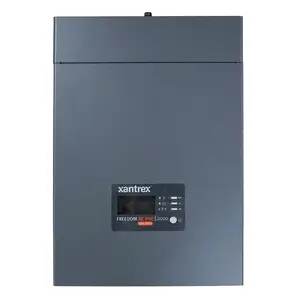

Xantrex 818-2010 Freedom XC Pro 2000W Inverter/Charger 12V

SKU: P78TUMC99C |  Mfg. Part: 818-2010  | UPC: 715535903138  |  0 Reviews  |  Share Make an offer

2 Available / 1 Sold
Condition: New

$1,206.36  $1,628.59
Other options (3)
818-2010818-2010$1,206.36818-2015818-2015$1,225.64818-3010818-3010$1,449.72818-3015818-3015$1,473.47
Need 10+? Request a volume quote
 Free Shipping for this Item
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

The Freedom XC PRO 2000 is a true sine wave 120 Vac inverter/charger with a built-in transfer switch. It delivers 2000 watts of continuous power and has a 4000 watt surge capability for up to 5 seconds. This unit supports charging of lithium-ion batteries and can charge dead batteries down to 0V. The inverter/charger operates at full output from -4°F to 104°F (-20°C to 40°C).

Technical Specifications

  • Continuous Output Power: 2000 W @40ºC True sine wave (TSW)
  • Surge Power: 4000 W (≤ 5 sec)
  • AC Output Operating Voltage Options: 120, 110, 108 Vac
  • Frequency (Configurable): 60 (or 50) Hz
  • Peak Efficiency: 91%
  • Full Load Efficiency: ≥ 86%
  • Operating Input AC Pass-Through Voltage Range: 85-140 Vac
  • Min Battery Voltage for Charging: 0.0 Vdc
  • Max DC Output Voltage: 18.0 Vdc (custom battery type)
  • Selectable DC Output Current: User Selectable: 5 – 100 A
  • Max DC Charge Current: 100A
  • Operating Temperature Range: 4 to 140 ºF (-20 to 60 ºC), with output derated above 104 ºF (40 °C)
  • Storage Temperature Range: -40 to 158 ºF (-40 to 70 ºC)
  • Operating Humidity Range: 5 to 95% RH, non-condensing
  • Transfer Relay AC Current Rating: 30 A surge, 24 A continuous
  • DC Input Operating voltage range: 10.1 – 18.0 VDC
  • DC Input/Output Nominal Voltage (inverting/Charging): 12.0 Vdc
  • DC Nominal Current at Full Load: 192 Adc
  • Dimensions (without flanges) L x W x H: 15.4”(390 mm) x 10.8”(275 mm) x 4.9”(125 mm)
  • Dimensions (with flanges) L x W x H: 16.0”(406 mm) x 12.0”(305 mm) x 4.9”(125 mm)
  • Net Weight: 17.1 lbs (7.76 kgs)
  • Shipping Weight: 20.0 lbs (9.1 kg)
  • Safety Certifications: ETL listed to CSA 107.1, UL458 and UL458 Marine Supplement (drip shield with product number 808-1050 required) ABYC E-11, A-31, A-32
  • EMC Certifications: CFR 47, FCC, PART 15, Subpart B, Class B and CAN ICES-3 (B) / NMB-3 (B)

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Package Size:
  • Category:
  • Date First Available:
  • Xantrex
  • 818-2010
  • B08C1XQ2GB
  • 715535903138
  • New
  • 20.15 lbs
  • 20 x 16 x 9 in
  • Power Inverters
  • April 20, 2021
