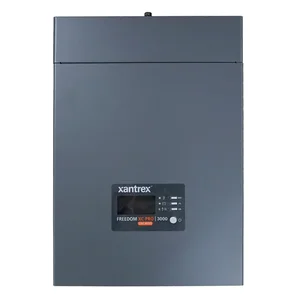

Xantrex 818-3010 Freedom XC Pro Inverter/Charger 3000W 150A 12V

SKU: PQDYASBNRW |  Mfg. Part: 818-3010  | UPC: 715535905774  |  0 Reviews  |  Share Make an offer

20 Available / 2 Sold
Condition: New

$1,449.72  $1,957.12
Other options (3)
818-3010818-3010$1,449.72818-2010818-2010$1,206.36818-2015818-2015$1,225.64818-3015818-3015$1,473.47
Need 10+? Request a volume quote
 Free Shipping for this Item
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

The Freedom XC PRO 3000 is a true sine wave 120 Vac inverter/charger with a built-in transfer switch. It provides 3000 watts of continuous power and has a 5-second surge rating of 6000W for motor loads. The unit features a 150A DC charge current and supports charging of lithium-ion batteries and dead batteries down to 0V. It includes a built-in communications card that supports RV-C, NMEA 2000, and J1939 protocols. System performance can be monitored and configured via a Bluetooth app using an optional remote panel.

Technical Specifications

  • Model Name: FREEDOM XC PRO 3000
  • AC Output Operating Voltage Options: 120/110/108V
  • Continuous Output Power: 3000 W @40ºC
  • Continuous AC Output Current: 25A
  • Surge Power: 6000W (≤ 5sec)
  • Frequency: 50 or 60 Hz (Configurable)
  • Peak Efficiency: 91%
  • Full Load Efficiency: > 84%
  • Operating Input AC Pass-Through Voltage Range: 85 – 140Vac
  • Max DC Output Voltage: 18.0Vdc (custom battery type)
  • Selectable DC Output Current: 5 – 150 A (User Selectable)
  • Max AC Input Current: 25A rms
  • Max DC Charge Current: 150A
  • Operating Temperature Range: -4 to 140ºF (-20 to 60ºC), with output derated above 104ºF (40°C)
  • Storage Temperature Range: -40 to 158ºF (-40 to 70ºC)
  • Transfer Relay AC Current Rating: 50A surge, 40A continuous
  • DC Input Operating voltage range: 10.1 – 18.0Vdc
  • DC Input/Output Nominal Voltage: 12Vdc
  • Dimensions (L x W x H, without flanges): 15.4″ x 10.8″ x 4.9″ (390mm x 275mm x 125mm)
  • Dimensions (L x W x H, with flanges): 16.0″ x 12.0″ x 4.9″ (406mm x 305mm x 125mm)
  • Net Weight: 18.6lbs (8.4kg)
  • Safety Certifications: ETL listed to CSA 107.1, UL458 and UL458 Marine Supplement, ABYC E-11, A-31
  • EMC Certifications: CFR 47, FCC, PART 15, Subpart B, Class B and CAN ICES-3 (B) / NMB-3 (B)
  • Transfer Relay: 50A
