Xantrex 818-2015 Freedom XC PRO 2000W Marine Inverter/Charger 12V

Name: Xantrex 818-2015 Freedom XC PRO 2000W Marine Inverter/Charger 12V
Brand: Xantrex
SKU: P0Q1NDPKKS
Price: 1225.64 USD
Availability: InStock

SKU: P0Q1NDPKKS | Mfg. Part: 818-2015 | UPC: 715535912673 | 0 Reviews | Share Make an offer

1 Available
Condition: New

$1,225.64 ~~$1,654.61~~

Other options (3)

Need 10+? Request a volume quote

Free Shipping for this Item

Free pickup in Frisco, TX

Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

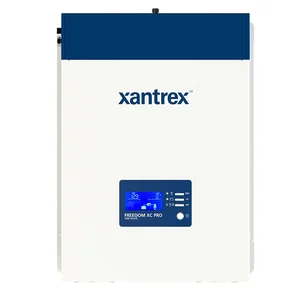

The Freedom XC PRO Marine 2000 is a true sine wave 120 Vac inverter/charger with a built-in transfer switch. It provides 2000 watts of continuous power and a 4000-watt surge for up to 5 seconds. The unit features a 100 amp battery charger with user-selectable output current from 5-100A. It supports NMEA 2000 and J1939 communication protocols via a built-in Micro-C NMEA 2000 connector. The inverter/charger can charge lithium-ion batteries and dead batteries down to 0V. It operates at full output from -4°F (-20°C) to 104°F (40°C).

Technical Specifications

AC Output Operating Voltage Options: 120, 110, 108 Vac
Continuous Output Power: 2000 W @40ºC True sine wave (TSW)
Continuous AC Output Current: 16.7 A
Surge Power: 4000 W (≤ 5 sec)
Frequency (Configurable): 60 (or 50) Hz
Peak Efficiency: 91%
Full Load Efficiency: ≥ 86%
DC Input Operating voltage range: 10.1 – 18.0 VDC
DC Input Max Non-Operating Voltage: 25.2 Vdc
DC Nominal Current at Full Load: 192 Adc
Min Battery Voltage for Charging: 0.0 Vdc
Max DC Output Voltage: 18.0 Vdc (custom battery type)
Selectable DC Output Current: User Selectable: 5 – 100 A
Full Load Max AC Input Current: 24 Arms
Max DC Charge Current (selectable down to 5A): 100A
Operating Input AC Pass-Through Voltage Range: 85-140 Vac
Safe Non-Operating Input AC Voltage Range: Up to 240 Vac RMS
Power Factor at Full Charge Rate: > 98%
Operating Temperature Range: 4 to 140 ºF (-20 to 60 ºC), with output derated above 104 ºF (40 °C)
Storage Temperature Range: -40 to 158 ºF (-40 to 70 ºC)
Operating Humidity Range: 5 to 95% RH, non-condensing
Transfer Relay AC Current Rating: 30 A surge, 24 A continuous
DC Input/Output Nominal Voltage (inverting/Charging): 12.0 Vdc
Dimensions (without flanges): 15.4”(390 mm) x 10.8”(275 mm) x 4.9”(125 mm)
Dimensions (with flanges): 16.0”(406 mm) x 12.0”(305 mm) x 4.9”(125 mm)
