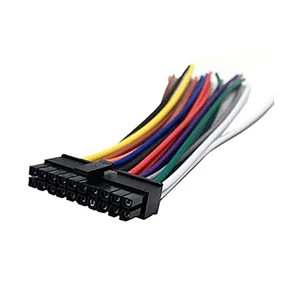

808-0820 - Xantrex Freedom Communication Card Connector with 10" Lead

Freedom Communication Card Connector with 10" Lead

The Xantrex 808-0820 20-Pin Communications Harness is designed for use with Freedom XC PRO Series Inverter/Chargers. This assembly connects to the 20-pin CC port, allowing the inverter/charger to interface with the vehicle’s ignition control system (ACC) through a single control wire. Additionally, three wires enable connection to the vehicle’s onboard display utilizing CANbus/RV-C and J1939 protocol.

The Xantrex Freedom Communication Card Connector with 10" Lead, part number 808-0820, is an interconnect cable designed for integrating Freedom XC PRO Series Inverter/Chargers into vehicle systems. This 20-pin communications harness facilitates two primary functions. Firstly, it connects to the inverter/charger's CC port to enable control of the vehicle's ignition system (ACC) via a single wire. This allows for coordinated power management within the vehicle's electrical architecture. Secondly, the harness provides connectivity for the vehicle's onboard display, supporting communication through CANbus/RV-C and J1939 protocols. This enables the inverter/charger to interface with existing vehicle display systems, providing operational data. This component is suitable for IT professionals and integrators working with mobile power solutions that require robust communication between Xantrex Freedom XC PRO Series units and vehicle control/display systems.
