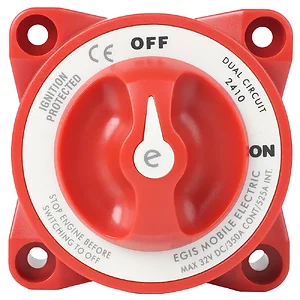

Egis E-Series 350A Dual Battery Switch

This dual circuit battery switch is designed for reliable and safe operation in harsh environments. Its sealed design ensures protection against dust and water intrusion, making it perfect for marine settings.

The ignition protection feature of this switch allows for safe installation in closed compartments, minimizing the risk of ignition from explosive gases. The serrated flange lock nuts improve the resistance of cable terminals against loosening due to vibrations, ensuring a stable connection.

With flexible mounting options, this switch can be adapted to a variety of installation types, catering to diverse user needs. Made with stainless steel hardware and high-temperature materials, it is built to withstand tough conditions.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8�-16
• Terminal Stud Torque: 140 in-lbs (15.8 N-m)
• Ring Terminal Size Acceptance: 3/8� (M10)
• Mounting Holes: #1/4" (M6) Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
• Cable Size to Meet Rating: 4/0 AWG

The Egis E-Series 350A Dual Battery Switch, part number 2410, is engineered for managing dual battery systems in demanding operational environments. This switch is suitable for IT infrastructure, fleet vehicles, or industrial applications where reliable power isolation and distribution are critical. Its sealed construction provides protection against dust and water, making it appropriate for installations exposed to environmental elements. Key features include ignition protection, enabling safe deployment in enclosed compartments without risk from explosive gases. The design incorporates serrated flange lock nuts to enhance the resilience of cable terminals against vibration-induced loosening, ensuring connection stability. Constructed with stainless steel hardware and high-temperature materials, this unit offers durability. Flexible mounting options facilitate integration into diverse system architectures, addressing various installation requirements for IT and industrial professionals.
