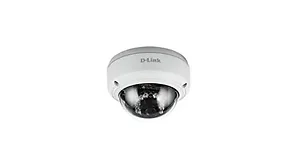

DCS-4602EV-VB1 - D-link Camera DCS-4602EV-VB1 2MP Full HD H.265 Outdoor Dome PoE IP Retail

Camera Hardware Profile
1/2.7" 2 Megapixel progressive CMOS sensor
20 meter IR illumination distance
Minimum illumination:
0.1 lux / F2.0 (color)
0.05 lux /F2.0 (B/W)
0 lux / F2.0 (IR-LED on)
Built-in Infrared-Cut Removable (ICR) Filter module
10x digital zoom
Minimum object distance 0.2M
Focal length: 2.8 mm
Aperture: F2.0
Angle of view:
(H) 120^o
(V) 66^o
(D) 140^o
Adjustment angle (non-motorized):
Vertical: 30 to 90^o
Horizontal: -120 to 120^o Camera Housing
IP66-compliant weatherproof housing
IK10 vandal-proof housing Image Features
Configurable image size, quality, frame rate, and bit rate
Configurable motion detection windows
Configurable privacy mask zones
Configurable shutter speed, brightness, saturation, contrast, sharpness and 3D filter
Auto White Balance (AWB)
Auto Gain Control (AGC)
Wide Dynamic Range (WDR)
Time stamp and text overlays Video Compression
Simultaneous H.265/H.264/MJPEG format compression
H.265/H.264/MJPEG multicast streaming
JPEG for still images Video Resolution
16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps
4:3 - 1600 x 1200, 1440 x 1080, 1280 x 960, 900 x 720, 800 x 600, 640 x 480 up to 30 fps External Device Interfaces
10/100 BASE-TX Fast Ethernet port
Supports 802.3af PoE Class 3 Network Protocols
IPv6
IPv4
ARP
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP/HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP/RTSP/RTCP
IP filtering
Multicast
CoS
QoS/DSCP
SNMP
ONVIF compliant Security
Administrator and user group protection
Password authentication
HTTP and RTSP authentication Event Management
Motion detection
Tamper detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup Remote Management
Take snapshots/video clips and save to local hard drive
Configuration interface accessible via web browser System Requirements for Web Interface
Operating System: Microsoft Windows 10 / 8 / 7
Browser: Internet Explorer, Firefox, Chrome D-View^TMCam System Requirements
Operating System:
32-bit: Windows 8 / 7 (SP1)
64-bit: Windows 10 / 8 / 7 (SP1) / Server 2012 / Server 2008 R2
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/IP D-View^TMCam Software Functions
Remote management/control of up to 32 cameras
Supports all management functions provided in web interface
Viewing of up to 32 cameras on one screen
Scheduled motion triggered, or manual recording options Power
Input: 100 to 240 V AC, 50/60 Hz
Output: 12 V DC 1.5 A Power Consumption
6.6 W +/- 5% (PoE) Temperature
Operating: -30 to 50 ^oC (-22 to 124 ^oF)
Storage: -20 to 70 ^oC (-4 to 158 ^oF) Humidity
Operating: 20% to 80% non-condensing
Storage: 5% to 95% non-condensing Certifications
CE
CE LVD
FCC
RCM Item Dimension (L inchxW inchxH inch)
9 x 6 x 4

Weight
2.00lb

Warranty Information
5 Years
