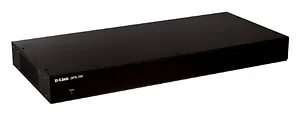

DPS-700 - D-link REDUNDANT POWER SUPPLY FOR D-LINK DGS-3630, 3130, & 1510

Input Voltage Range
900VAC to 264VAC Input Frequency Range
47 Hz to 63 Hz Maximum Input Current
7.5A at 115VAC 60Hz
3.7A at 230VAC 50Hz Maximum In-Rush Current
30A at 115VAC 60Hz
30A at 230VAC 50Hz Leakage Current
3.5mA Max Output Voltage
+54V DC
+12V DC Total Output Power
589 Watts Efficiency
80% Over Voltage Protection
Trip Point: Below 16V for +12V Output
Auto Recovery Mode Against Short Circuit to Over Load Conditions
-59V Output Below -57V will Protect Itself Against Short Circuit or Over Load Condition LED Status
On: RPS Good
Off: RPS Failed Operating Temperature
0 to 65 C Storage Temperature
-40 to 70 C Safety Standards
UL 60950 3rd Edition
CSA 22.2 NO.234
EN 60 950 Safety Approvals
UL
CUL EMI
FCC Class B
CE Item Dimension (L"xW"xH")
8.52 x 6.19 x 1.46

Weight
28.53 lb

Warranty Information
1 Year
