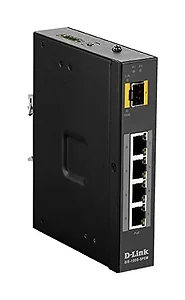

DIS-100G-5PSW - D-link 5-PORT GIGABIT POE UNMANAGED HARDENED INDUSTRIAL DIN-RAIL SWITCH WITH 1 SFP - DI

1 Available
Condition: New

$313.08  $422.66
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

General InformationThe DIS-100G Series Industrial Gigabit Unmanaged Switches are designed specifically to withstand wide temperature range, vibrations and shock. These rugged, yet easy to deploy, switches have superior environmental specification compared to those of commercial network switches. With it's hardened design combined with high availability network features, these switches form vital parts of any network infrastructure facilitating the increasing demand for smart cities, city-wide surveillance and wireless connectivity. DIS-100G Unmanaged Switches provides 5 Gigabit Ethernet ports and are designed for supporting standard industrial applications without complex setup to make the network truly plug-and-play. The DIS-100G-5PSW is compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivering up to 30 watts power per port along with data on standard Ethernet cabling. The switches can be used to power any IEEE 802.3af/at compliant PoE PD devices, which eliminates the need for additional wiring. Customers The DIS-100G Series family of switches is ideal for customers looking for a entry-level Ethernet switch for industrial environments. These unmanaged switches offer plug & play installation, ideal for network edge deployment. Application Challenging environmental conditions High ambient temperatures Market Heavy industrial / factory automation Intelligent transport system (ITS) / railway applications City surveillance / smart cities Interfaces/PortsTotal Number of Network Ports: 4Uplink Port: NoModular: YesStack Port: NoPort/Expansion Slot Details: 4 x Gigabit Ethernet NetworkPort/Expansion Slot Details: 1 x Gigabit Ethernet Expansion SlotMedia & PerformanceMedia Type Supported: Optical FiberMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 1000Base-XNetwork Technology: 100/1000Base-TI/O ExpansionsNumber of Total Expansion Slots: 1Expansion Slot Type: SFP (mini-GBIC)Shared SFP Slot: NoNumber of SFP Slots: 1Network & CommunicationLayer Supported: 2Management & ProtocolsManageable: NoPower DescriptionPower Source: Power SupplyRedundant Power Supply Supported: NoPhysical CharacteristicsForm Factor: Wall MountableForm Factor: DIN Rail MountableHeight: 1.1"Width: 5.5"Depth: 4.2"Weight (Approximate): 13.23 oz

Expert Overview

The D-Link DIS-100G-5PSW is a 5-port Gigabit unmanaged industrial Ethernet switch designed for challenging environmental conditions. It features four 10/100/1000BASE-T PoE ports and one SFP port, supporting both twisted pair and optical fiber media. This switch is built to withstand wide temperature ranges, vibrations, and shock, making it suitable for heavy industrial, factory automation, intelligent transport systems, and city surveillance applications. The DIS-100G-5PSW provides up to 30 watts of power per port, compliant with IEEE 802.3af/at PoE standards, eliminating the need for separate power wiring for compatible devices. Its unmanaged, plug-and-play design simplifies network edge deployment without complex setup. This device is ideal for businesses requiring a rugged, entry-level Ethernet switch for industrial environments where commercial-grade switches would not suffice.

Technical Specifications

General
Hardware Version
DIS-100G-5PSW: A1
Number of Ports
DIS-100G-5PSW:
4 x 10/100/1000BASE-T PoE ports
1 x SFP ports
Port Functions
IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet
IEEE 802.3ab for Gigabit Ethernet
IEEE 802.3z for Gigabit fiber
IEEE 802.3x Flow Control
IEEE 802.3af/at Power over Ethernet
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Media Interface Exchange
Auto-MDI/MDIX adjustment for all twisted pair ports
Performance
Switching Capacity
10 Gbps
Maximum Forwarding Rate
7.44 Mpps
MAC Address Table Size
Up to 2K entries
Transmission Method
Store-and-forward
Jumbo Frame
9 KB
Advanced Features
Broadcast/Multicast/Unicast Storm Control
IEEE 802.1p Quality of Service (QoS) - 4 hardware queues per port
PoE
PoE Standards
IEEE 802.3af/at
PoE Capable Ports
Ports 1 to 4
PoE Power Budget
Max. 120 W1
Physical
Diagnostic LEDs
DIS-100G-5PSW:
ALM
P1/P2
Link/Activity/Speed
PoE status
Power Input
DIS-100G-5PSW:
48 to 58 V DC terminal block dual input
Power Consumption
DIS-100G-5PSW:
Maximum: 120.2 W (PoE on)
Alarm Relay
1 A at 24 V
Heat Dissipation
DIS-100G-5PSW:
410.12 BTU/hr (PoE on)
Ventilation
Fanless, passive cooling
Operating Temperature
-40 to 75 oC (-40 to 167 oF)
Storage Temperature
-40 to 85 oC (-40 to 185 oF)
Operating Humidity
0% to 95% RH, non-condensing
Storage Humidity
0% to 95% RH, non-condensing
Material
IP30-rated metal casing
Installation
DIN rail/wall-mountable
MTBF
>25 years
Certifications
UL/CE/FCC
NEMA-TS2
EN50121-4 compliant
UL C1D2 compliant (DIS-100G-5PSW)
Safety
UL61010-1, UL61010-2-201, UL C1D2
EMI
47 CFR FCC Part 15 Subpart B (Class A)
ICES-003 Issue 6 (Class A)
EMC
EN61000-6-2
EN61000-6-4
EMS
EN 61000-4-2 ESD Level 3
EN 61000-4-3 RS Level 3
EN 61000-4-4 EFT Level 3
EN 61000-4-5 Surge Level 3
EN 61000-4-6 CS Level 3
EN 61000-4-8
Environmental Tests
IEC 60068-2-27 Shock
IEC 60068-2-32 Freefall
IEC 60068-2-6 Vibration
Order Information
DIS-100G-5PSW 4 x 10/100/1000 Mbps PoE ports + 1 x SFP port switch with -40 to 75oC operating range
Optional SFP Transceivers
DIS-S310LX 1000BASE-LX, single-mode, 10 km, -40 to 85 oC operating temperature
DIS-S301SX 1000BASE-SX, multi-mode, 550 m, -40 to 85 oC operating temperature
Optional Accessories
DPE-SP110 Outdoor PoE Ethernet Surge Protector
DPE-SP110I Ethernet Surge Protector
Item Dimension (L"xW"xH")
9 x 8 x 3
Weight
2.00 lb
Warranty Information
Limited Lifetime

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • D-Link
  • DIS-100G-5PSW
  • B07CQ6SXP9
  • 790069437885
  • New
  • 1.55 lbs
  • 8 X 3 X 7
  • Aug 13, 2026
  • Nov 05, 2018
  • Yes
  • TW
Product Identifiers: Brand: D-link • Part #: DIS-100G-5PSW • UPC: 790069437885 • ASIN: B07CQ6SXP9 • Category: Networking • TAA Compliant

Frequently Asked Questions

What type of environments is this switch designed for?

This switch is designed for challenging industrial environments, including those with wide temperature ranges (-40 to 75 oC), vibrations, and shock. It is suitable for applications such as heavy industrial, factory automation, intelligent transport systems, and city surveillance.

What are the power over Ethernet (PoE) capabilities of this switch?

The switch features four PoE-capable ports (ports 1 to 4) that comply with IEEE 802.3af/at standards, delivering up to 30 watts of power per port. The total PoE power budget is 120 W.

Can this switch be managed or configured?

No, the DIS-100G-5PSW is an unmanaged switch. It is designed for plug-and-play installation without complex setup, making it ideal for network edge deployments where simplicity is preferred.

What are the mounting options for this industrial switch?

The switch supports both DIN rail and wall-mountable installations, offering flexibility for deployment in various industrial settings.
