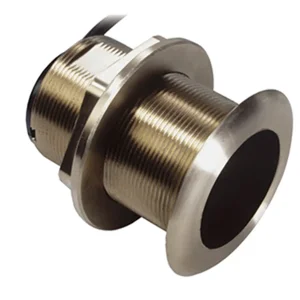

B60-20-HB - Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20º

The bronze B60-20º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8 m (25')
• Bronze transducer housing

Specifications:

• Weight: 1.4 kg (3 lb)

• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane

The Airmar B60 Bronze Thru-Hull Transducer is designed for marine depth and temperature sensing applications, specifically for integration with Humminbird systems utilizing a #9 7-pin plug. This thru-hull transducer features a bronze housing and a ceramic element engineered with a built-in 20-degree tilt for deadrise compensation, allowing for a vertical beam without requiring an external fairing block. This design aims to provide accurate depth readings by maintaining optimal echo returns. The low-profile housing extends only 5 mm (3/16") from the hull, minimizing drag and maintaining boat performance. It is suitable for center-console and trailered boats up to 8 meters (25 feet) in length, and supports hull deadrise angles up to 24 degrees. The part number for this unit is B60-20-HB. It includes a built-in temperature sensor, offering dual functionality for marine navigation and monitoring.
