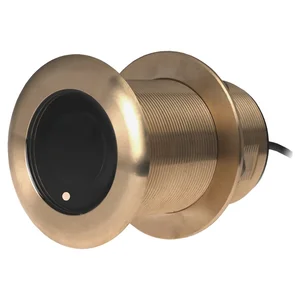

B60-20-9N - Airmar B60 Thru-Hull Transducer with 20° Tilt for Navico

Airmar B60 Thru-Hull Transducer with 20� Tilt for Navico

The B60 is a 600W, 50/200 kHz transducer featuring Airmar's innovative Tilted Element technology. It positions the ceramic element at a 20� angle within its housing, which helps to correct for the hull's deadrise angle when installed nearly flush with the hull. This orientation ensures that the sonar beam is directed straight down, maximizing echo returns for precise depth readings.

Key Features:

• Depth sensing and quick-response water temperature measurement.
• Power output of 600 W.
• Dual-frequency capability:
  • 50 kHz with a wide 45� beamwidth for depth performance up to 353 m (1200')
  • 200 kHz with a narrower 12� beamwidth for depth performance up to 206 m (700')
• Ideal for center-console or trailerable boats.
• Low-profile bronze housing protrudes only 5 mm (3/16") from the hull.
• No impact on boat performance while running.
• Constructed from bronze, suitable for fiberglass or wood hulls.
• Stainless steel housing version (SS60) available for use with all hull materials.

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 24�
• Housing Material: Bronze
• Functions: Depth, Temperature
• Compatible Hull Materials: Fiberglass or Wood
• Maximum Vessel Length Overall (LOA): Up to 8 m (26')
• Required Hole Size: 60 mm (2-3/8")
• Usable Shaft Length: 68.5 mm (2.70")
• Acoustic Window: Urethane
• Common Applications: Leisure/Yachting, Fishing
• Conventional Beam Patterns: 45�/12�
• Max Depth Capabilities: Low frequency- 366 m (1200'), High frequency- 206 m (700')
• Mounting Type: Tilted Element Thru-Hull
• Retractable Housing: No
• Frequency Type: Conventional Dual Frequency
• Tilted Element Design: Yes
• Weight: 1.4 kg (3 lbs.)

The Airmar B60 Thru-Hull Transducer with 20� Tilt for Navico is a 600W, dual-frequency sonar transducer designed for precise depth sensing and water temperature measurement. It operates at 50 kHz with a 45� beamwidth for depths up to 353 m (1200') and 200 kHz with a 12� beamwidth for depths up to 206 m (700'). The integrated 20� Tilted Element technology corrects for hull deadrise angles up to 24�, ensuring the sonar beam is directed straight down for optimal echo returns. This bronze-housed unit, part number B60-20-9N, is suitable for fiberglass or wood hulls and is ideal for center-console or trailerable boats up to 8 meters (26 feet) LOA. Its low-profile design protrudes only 5 mm (3/16") from the hull, minimizing impact on boat performance.
