B60-12-HB - Airmar MM-HB Mix & Match™ Cable 5-Pin 600W Series w/Humminbird #9 Connector - 9M

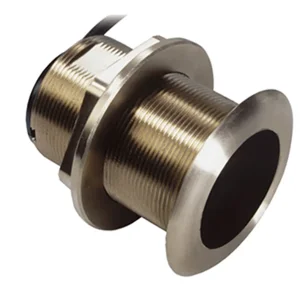

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12º

The bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.

Features:

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8M (25')
• Bronze transducer housing

Specifications:

• Weight: 1.4 kg (3 lb)

• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane

The Airmar B60-12-HB is a bronze thru-hull transducer designed for accurate depth readings on boats up to 8 meters (25 feet). This unit features a 12-degree tilted ceramic element, providing built-in deadrise compensation for hulls with up to 24 degrees of deadrise. This design ensures a vertical beam, which is critical for consistent echo returns and reliable depth data without requiring a fairing block. The nearly-flush housing minimizes drag, extending only 5mm (3/16") from the hull, which is beneficial for center-console and trailered boats where performance and clearance are considerations. It includes a built-in temperature sensor and connects via a Humminbird #9 plug with a 7-pin configuration. This transducer is suitable for IT buyers managing marine electronics for small to mid-sized vessels, providing a solution for reliable underwater data acquisition.
