Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Garmin 12-PinMix-N-Match Cable

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000')
• Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500')
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID® technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12G Cable

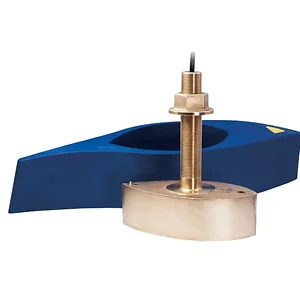

The Airmar B265C-LM is a bronze thru-hull transducer designed for marine applications requiring depth and water temperature sensing. This unit is suitable for commercial fishing vessels or research boats that operate in varying depths and require detailed underwater imaging. It provides 1 kW of power, enabling performance in both mid-depth and deep-water environments.

The transducer features dual-band CHIRP technology, with a low-frequency band from 42 to 65 kHz for depths up to 914 m (3000'), and a medium-frequency band from 85 to 135 kHz for depths up to 457 m (1500'). This range covers popular fishing frequencies and offers 73 kHz of total bandwidth. The B265C-LM-12G includes a Garmin 12-Pin Mix-N-Match cable and a high-performance fairing, which aids in maintaining signal integrity at speeds over 30 knots. It is designed for installation on fiberglass or wood hulls with a deadrise up to 20 degrees.
