B265C-LH-12F - Airmar B265C-LH Bronze TH Low/High CHIRP Furuno 12-Pin Mix-N-Match

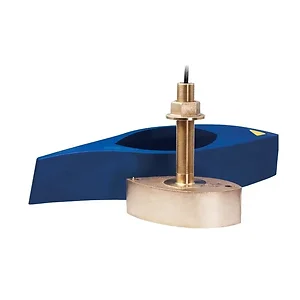

Airmar B265C-LH Bronze Thru Hull with Furuno 12-Pin Mix-N-Match Cable

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000')
• High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000')
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID® technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B265C-LH-MM Transduer
• High Speed Fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12F Cable

The Airmar B265C-LH Bronze Thru-Hull transducer is designed for marine applications requiring depth and water temperature sensing. This unit, part number B265C-LH-12F, provides dual-band CHIRP functionality, operating across low frequencies from 42 to 65 kHz and high frequencies from 130 to 210 kHz. It is suitable for vessels needing robust deep-water performance, offering a maximum depth of 914 meters (3000') on the low frequency and 304 meters (1000') on the high frequency. The 1 kW power rating supports detailed bottom discrimination and target separation. The bronze housing and included high-performance fairing are engineered to maintain signal integrity at speeds exceeding 30 knots. This transducer is equipped with a Furuno 12-Pin Mix-N-Match cable, making it compatible with specific Furuno systems.
