B265C-LH-0 - Airmar B265C-LH Bronze TH Low/High CHIRP With Bare Wire Mix-N-Match

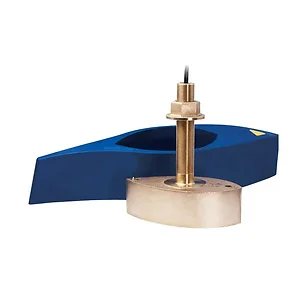

Airmar B265C-LH Bronze Thru Hull with Bare Wire Mix-N-Match Cable

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000')
• High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000')
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID® technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B265C-LH-MM Transduer
• High Speed Fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-0 Cable

The Airmar B265C-LH Bronze Thru-Hull transducer is designed for marine applications requiring detailed depth and water temperature sensing. This unit provides dual-band CHIRP functionality, operating across low frequencies from 42 to 65 kHz and high frequencies from 130 to 210 kHz. It delivers 1 kW of power, supporting a maximum depth of 914 meters (3000 feet) in low frequency and 304 meters (1000 feet) in high frequency. The transducer features a bronze housing and includes a high-performance fairing to maintain broadband performance at speeds exceeding 30 knots. It is suitable for vessels up to a 20-degree deadrise. The B265C-LH-0 model is intended for IT and marine professionals who require precise underwater data collection for navigation, research, or commercial fishing operations, offering broad frequency coverage for target discrimination.
